Vertical Designer Flat Panel Radiators

Description:

• With a strict manufacturing process, our radiators offer you a heating solution at an competitive price.
• They easily fit into your central heating system like a normal household radiator, meaning no complicated installation.
• The water inlet/outlet size of radiators is 1/2".
• All of our radiators come with lifetime warranty.
• It perfectly matches the decoration style of all rooms such as kitchen, bathroom, bedroom and living room.

---

Features And Details:

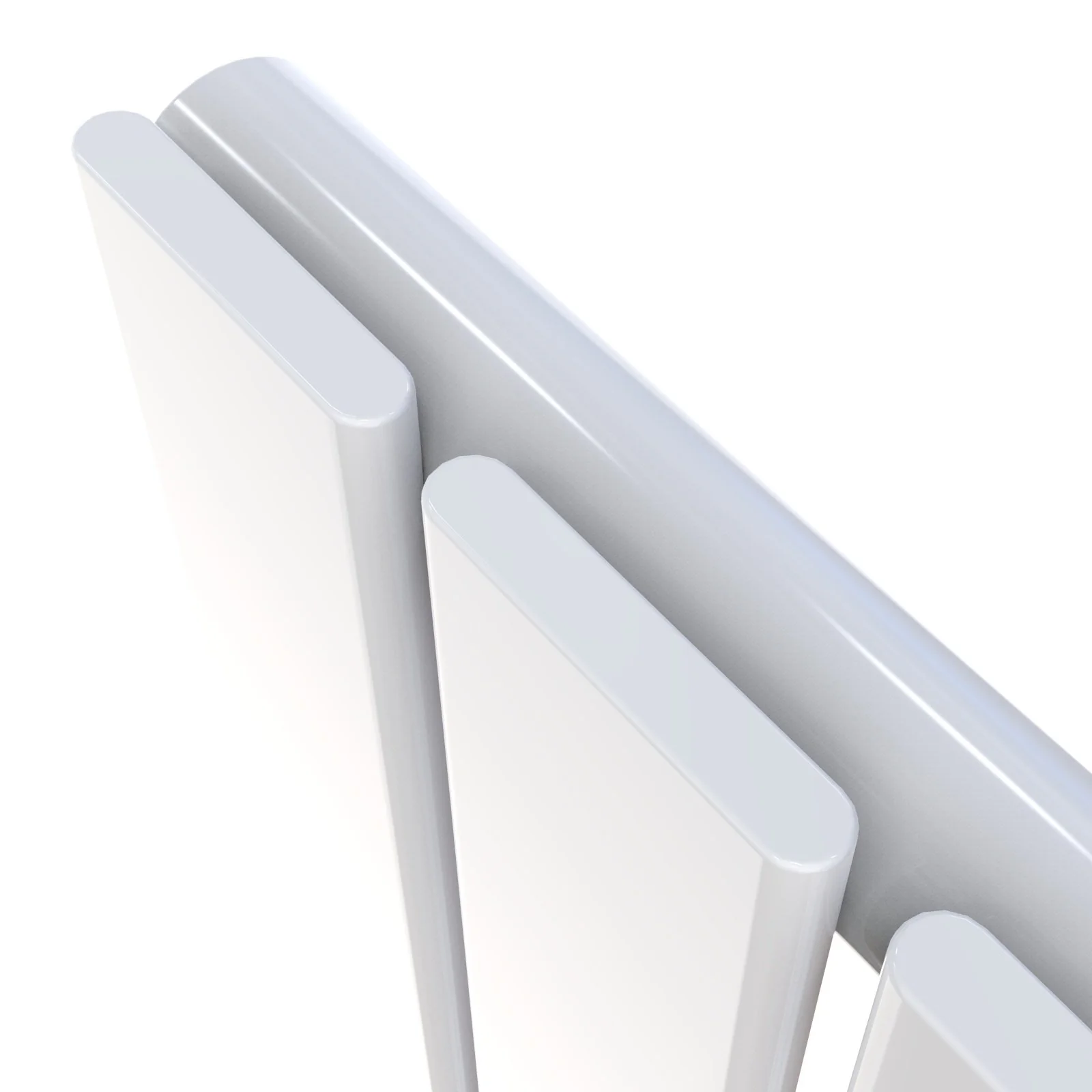

• High quality triple layered finish.
• Manufactured in accordance with BS EN 442
• 1/2" inlets and outlets
• Made from 1.6mm Premium Mild Steel
• Unique hot water circulation structure
• Modern style vertical Flat Panel high quality heating radiators

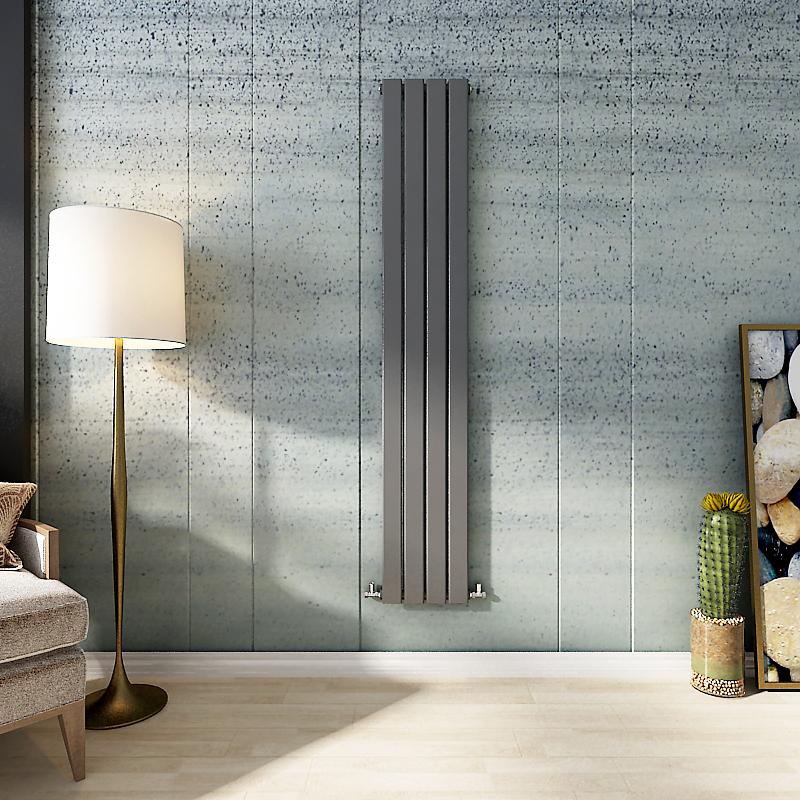

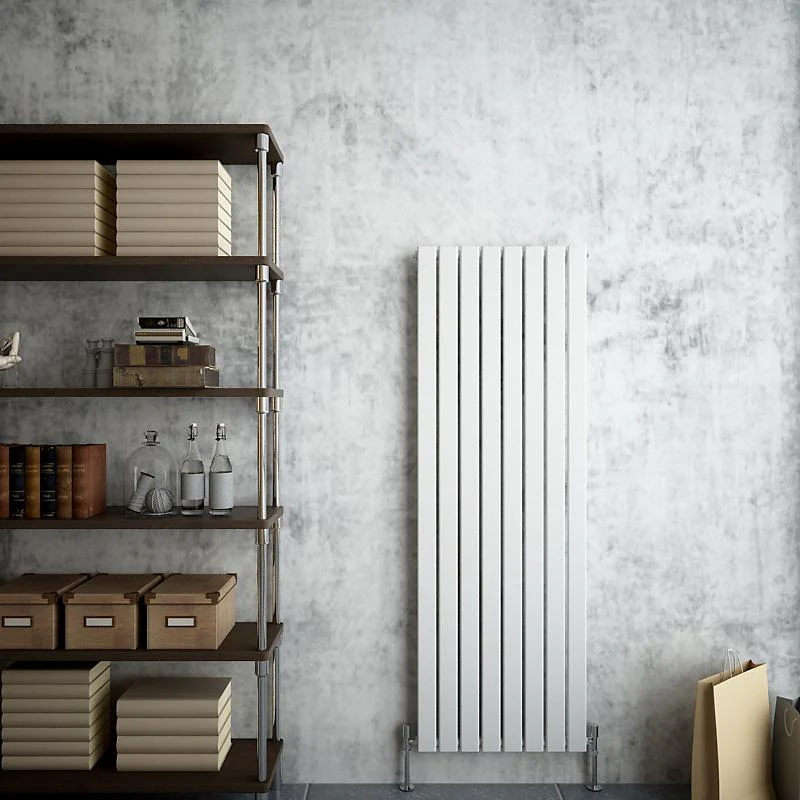

• Wall mount or stand-up installation
• Brackets and fixings included
• Valves are not included.But can be bought separately.Click here to buy our high quality valves.

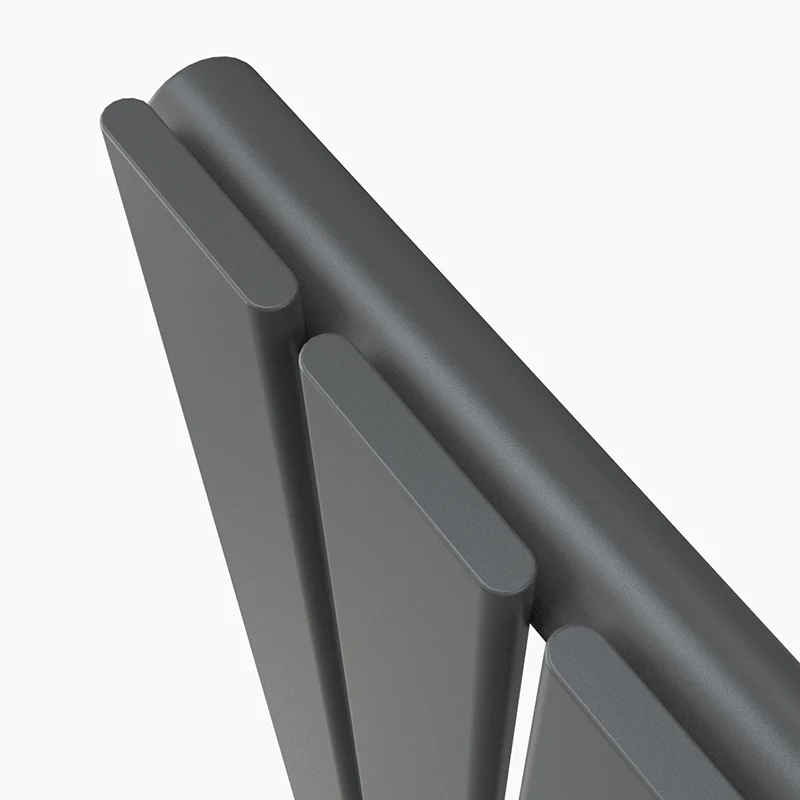

• Note: Anthracite and Black Color Are Matte and the White Color is Gloss

---

Single Flat Panel Vertical Designer Radiators:

Model	Size (HxW)	Panel	Pipe Amount	Weight (KG)	Heat Output		Data Sheet
					Watt	BTU

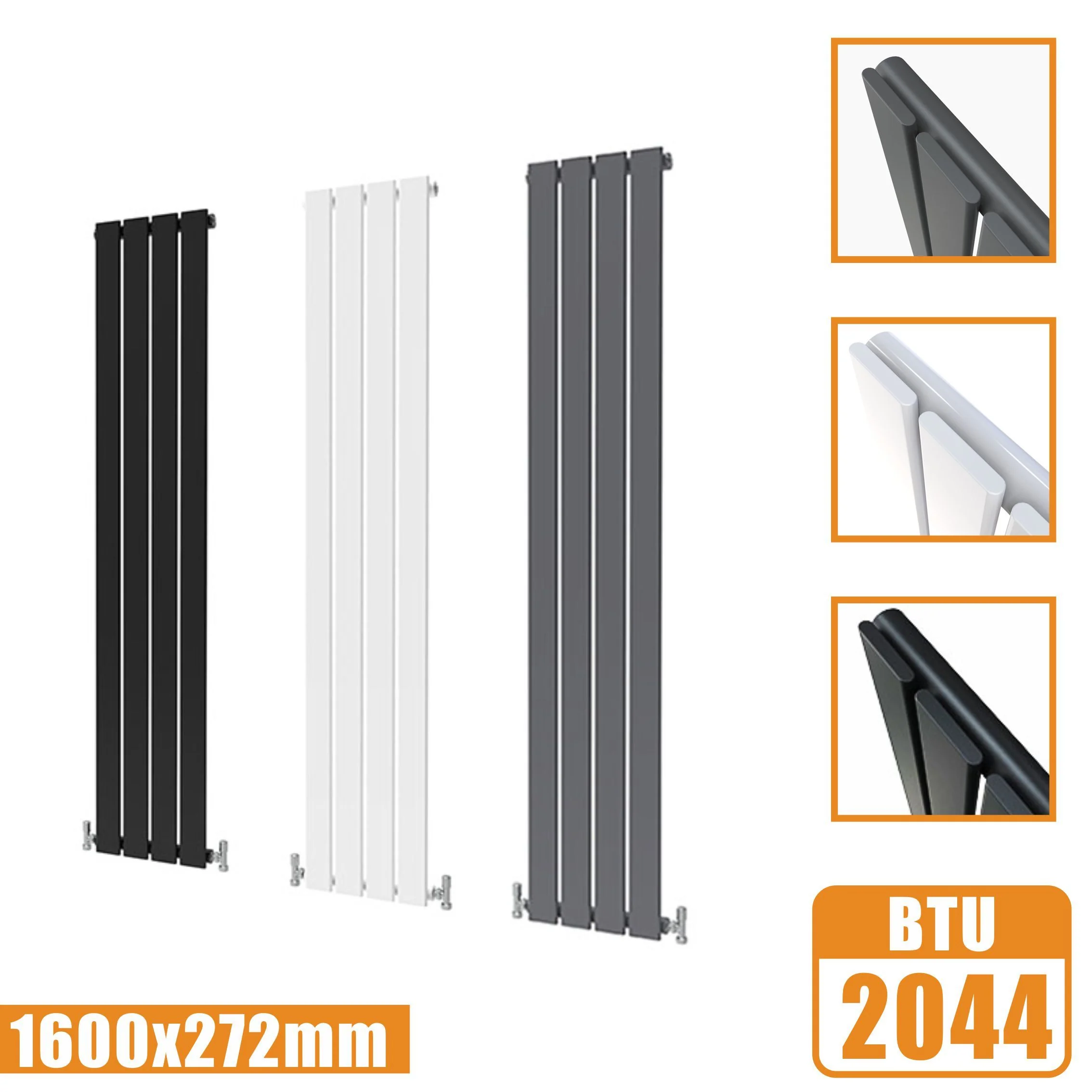

Flat Panel	1600 x 272 mm	Single	4	11.8	599	2044	Click to view

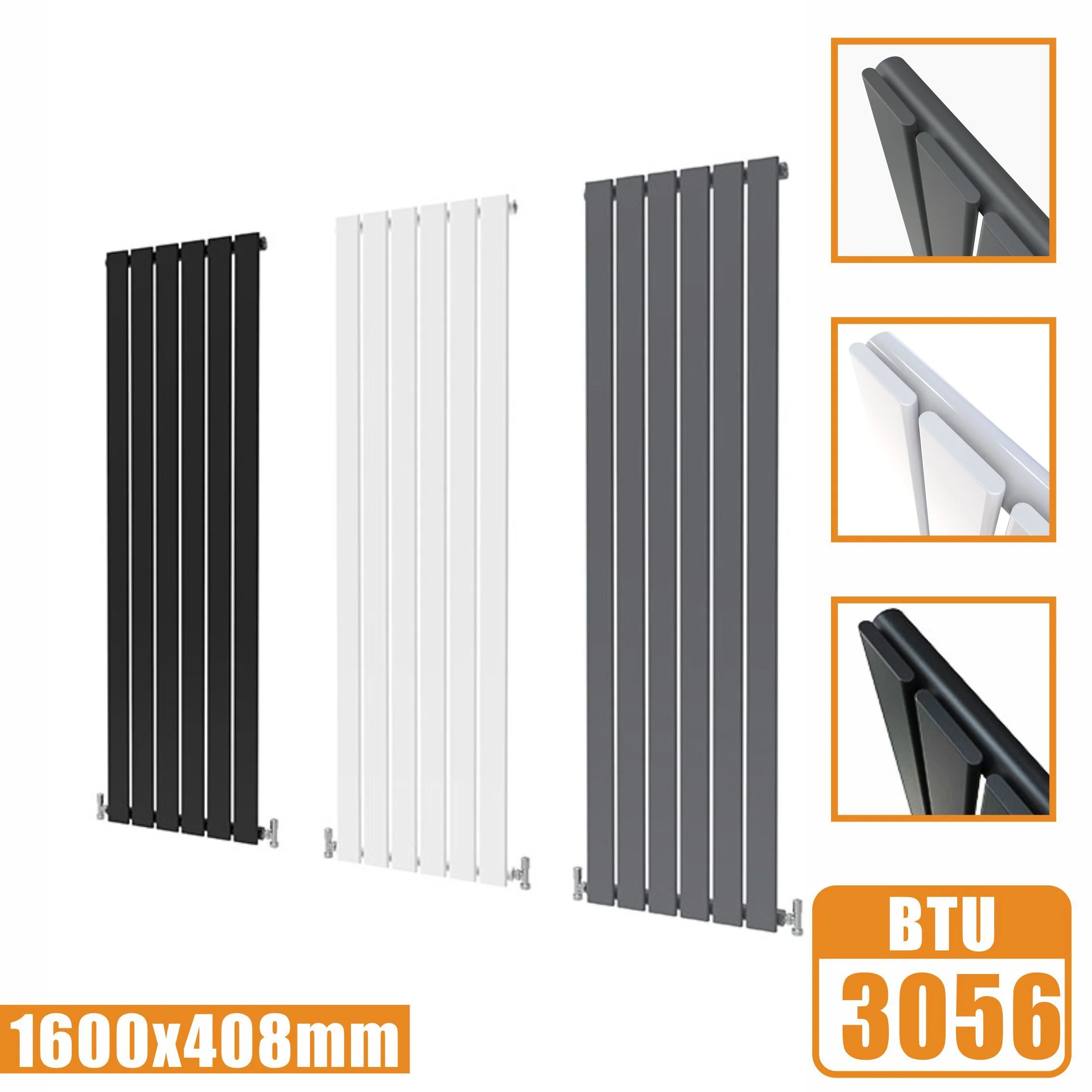

Flat Panel	1600 x 408 mm	Single	6	18	895	3056	Click to view

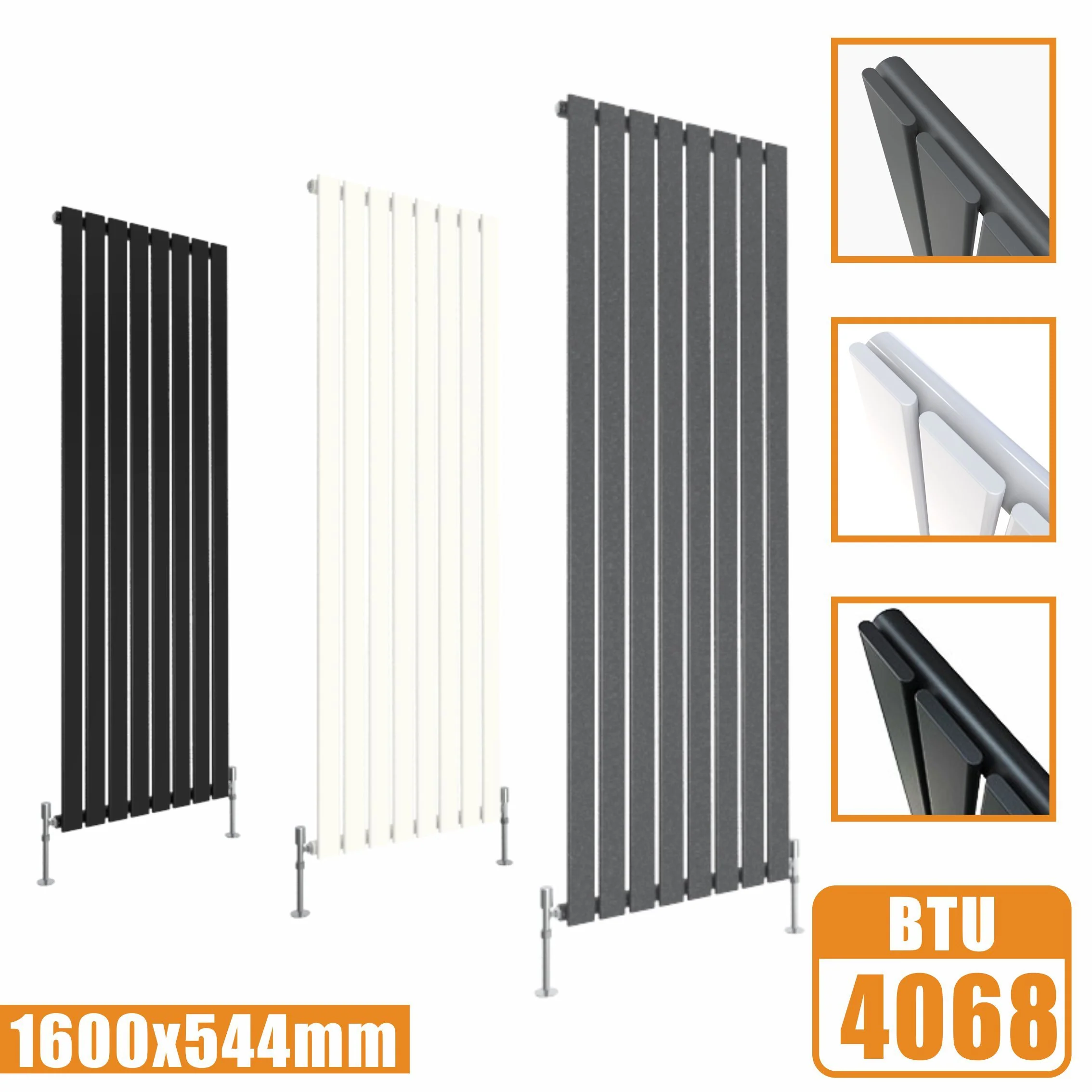

Flat Panel	1600 x 544mm	Single	8	23.2	1192	4068	Click to view

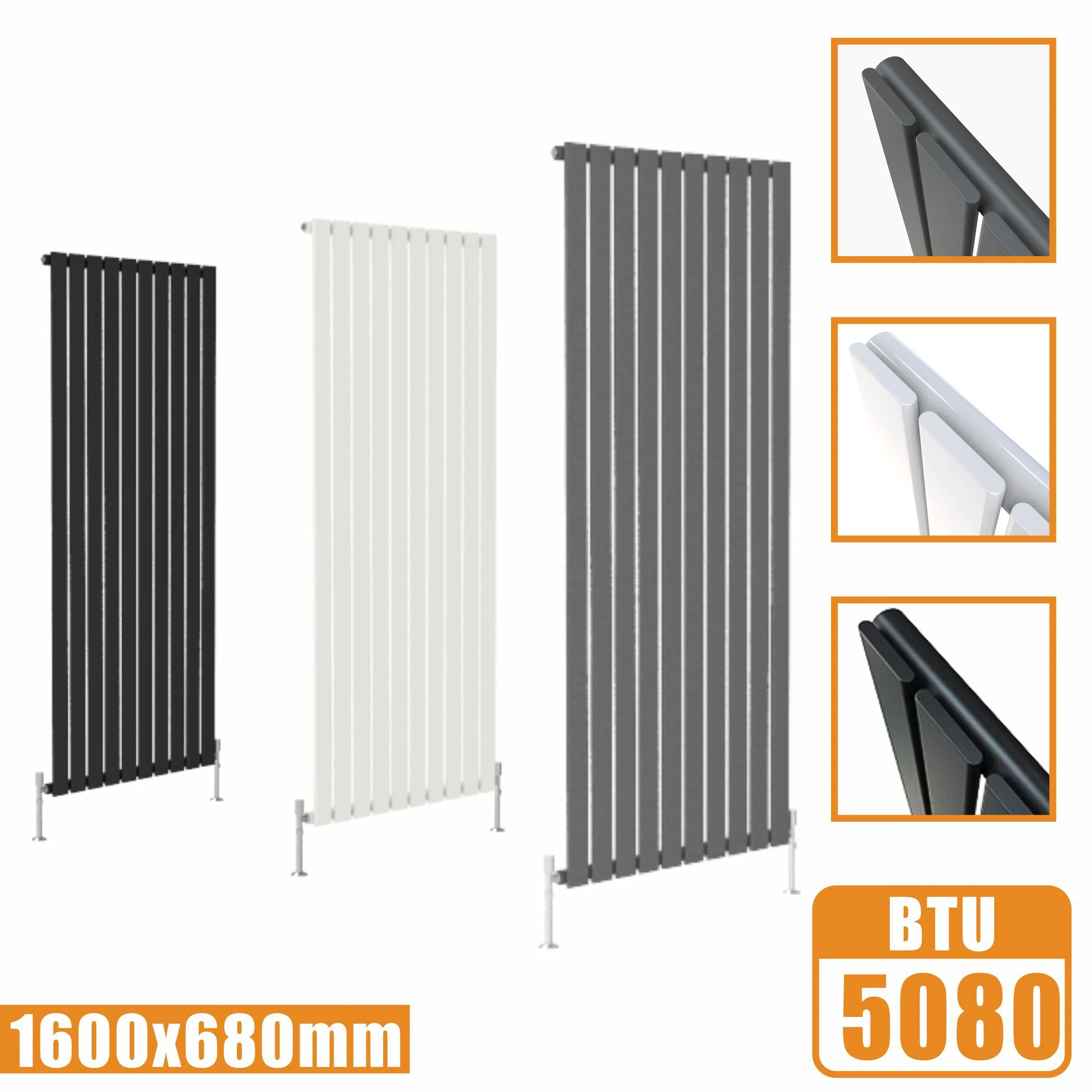

Flat Panel	1600 x 680 mm	Single	10	29	1488	5080	Click to view

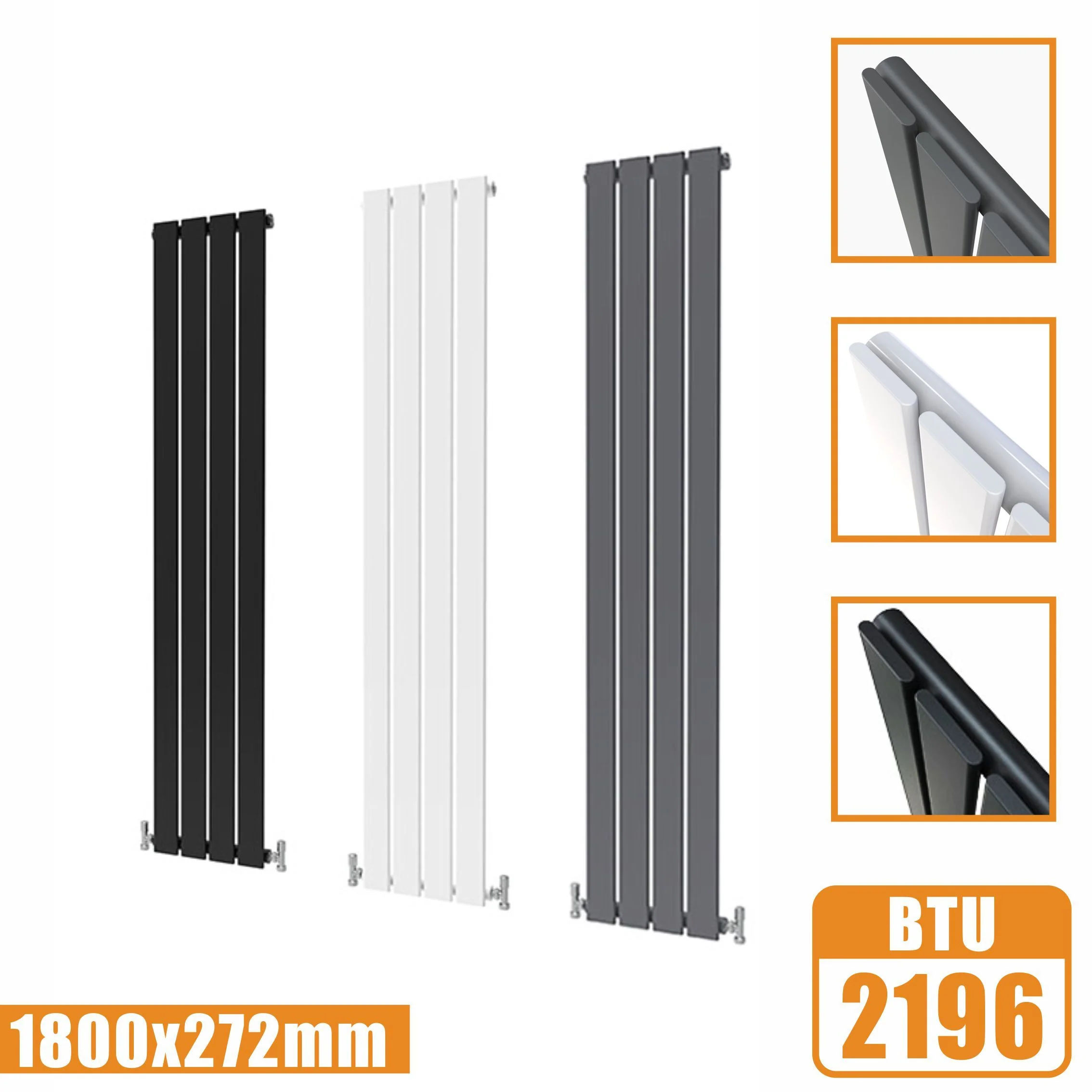

Flat Panel	1800 x 272 mm	Single	4	13.1	643	2196	Click to View
Flat Panel	1800 x 408 mm	Single	6	19.9	962	3284	Click to View

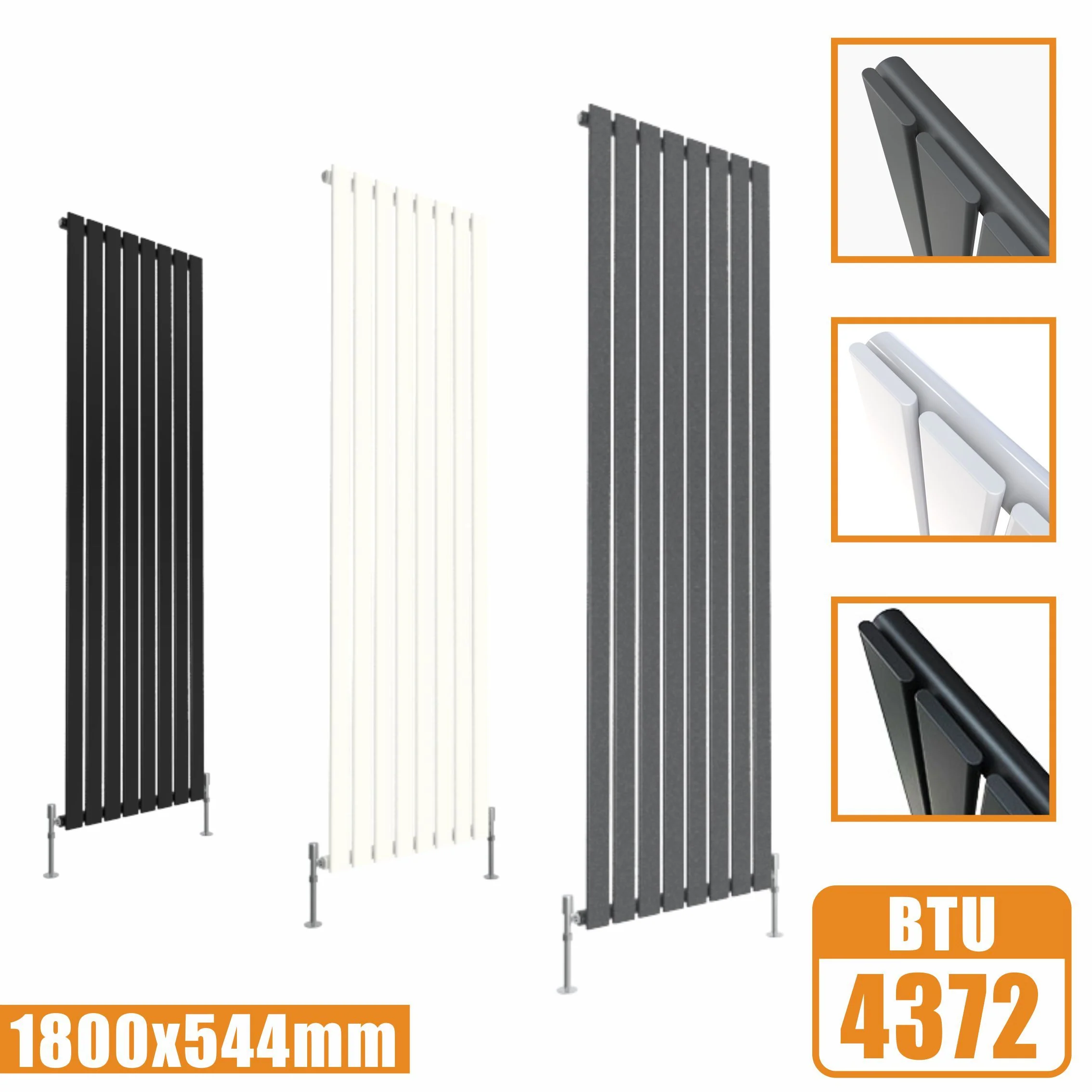

Flat Panel	1800 x 544 mm	Single	8	25.4	1281	4372	Click to View

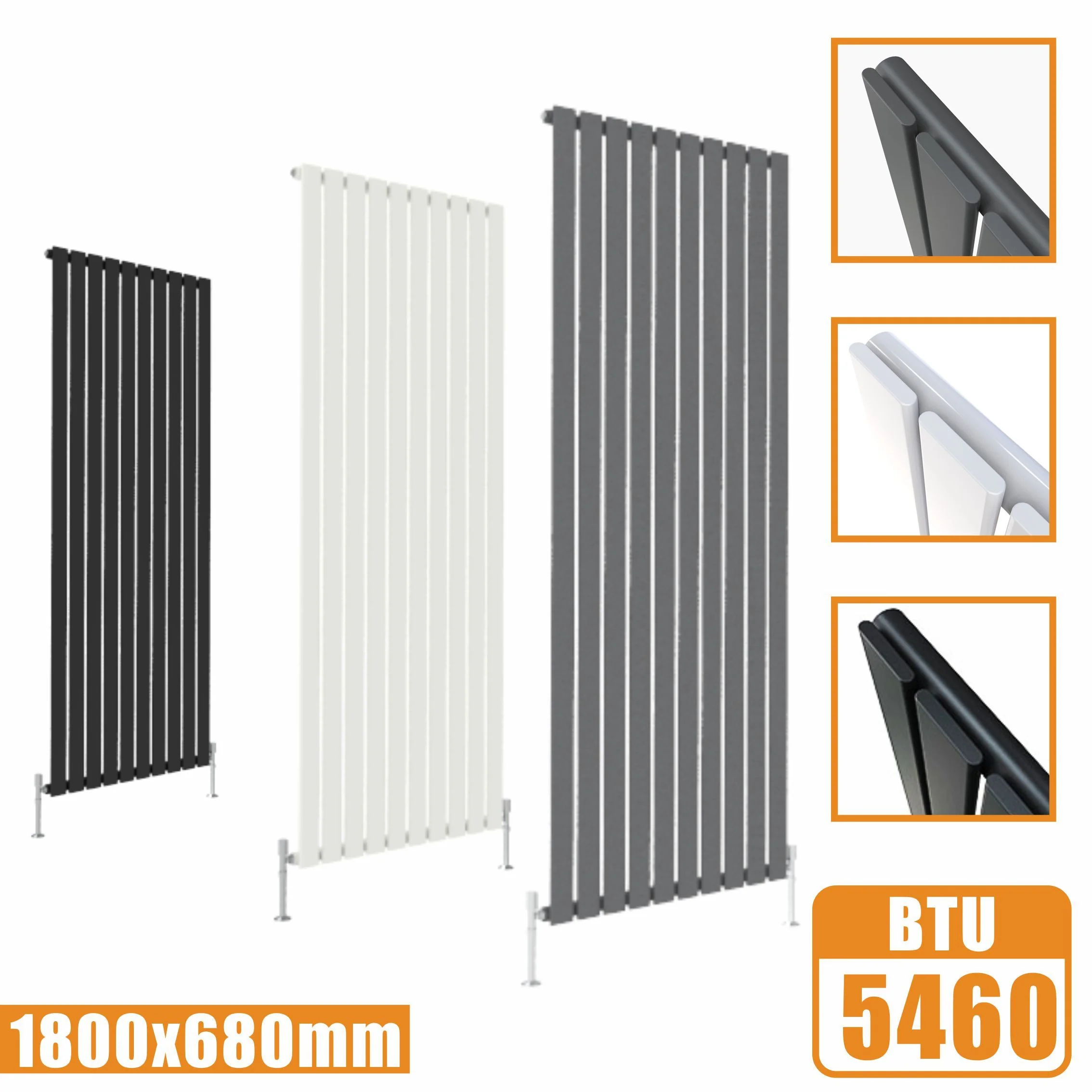

Flat Panel	1800 x 680 mm	Single	10	31.7	1600	5460	Click to View

---

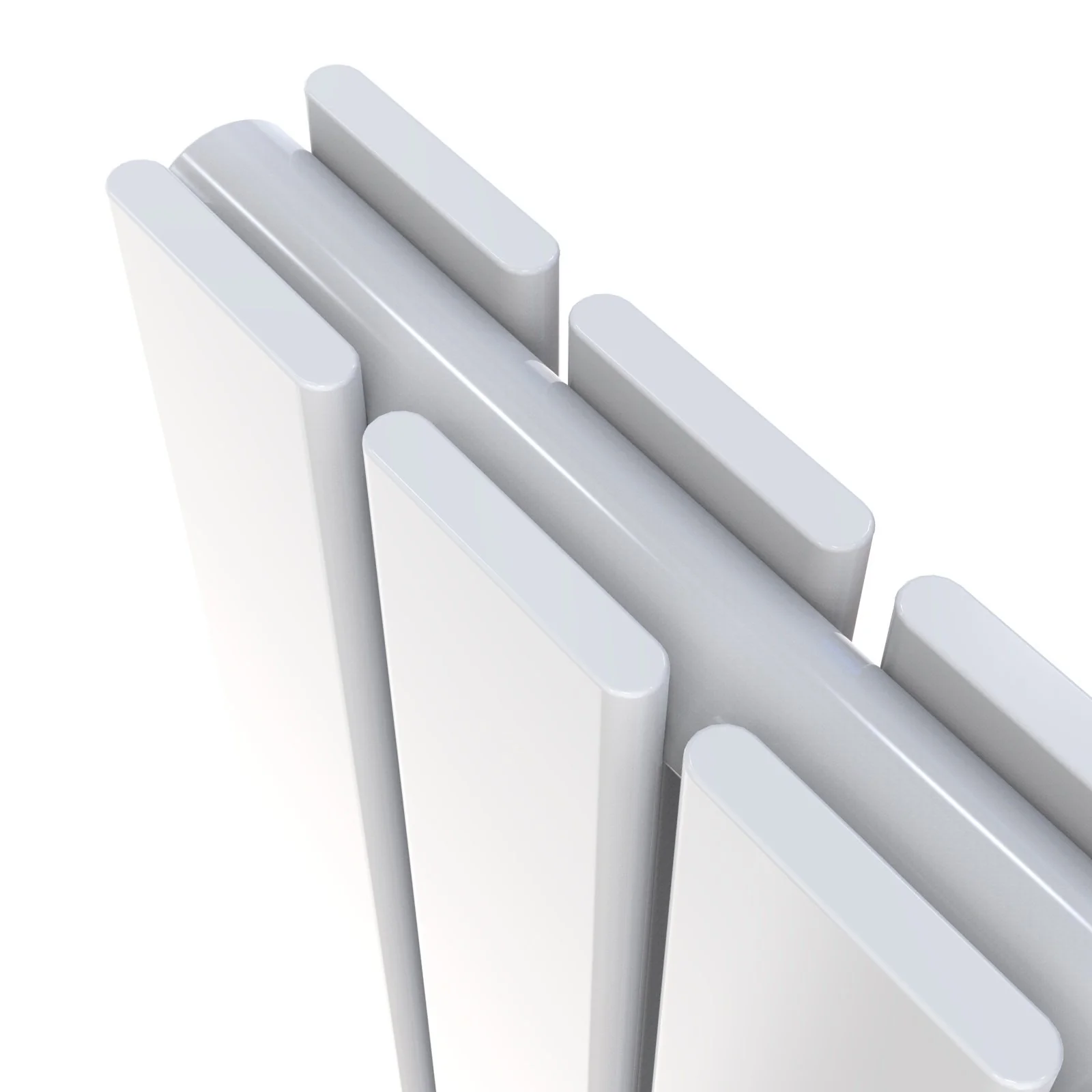

Double Flat Panel Vertical Designer Radiators:

Model	Size (HxW)	Panel	Pipe Amount	Weight (KG)	Heat Output		Data Sheet
					Watt	BTU

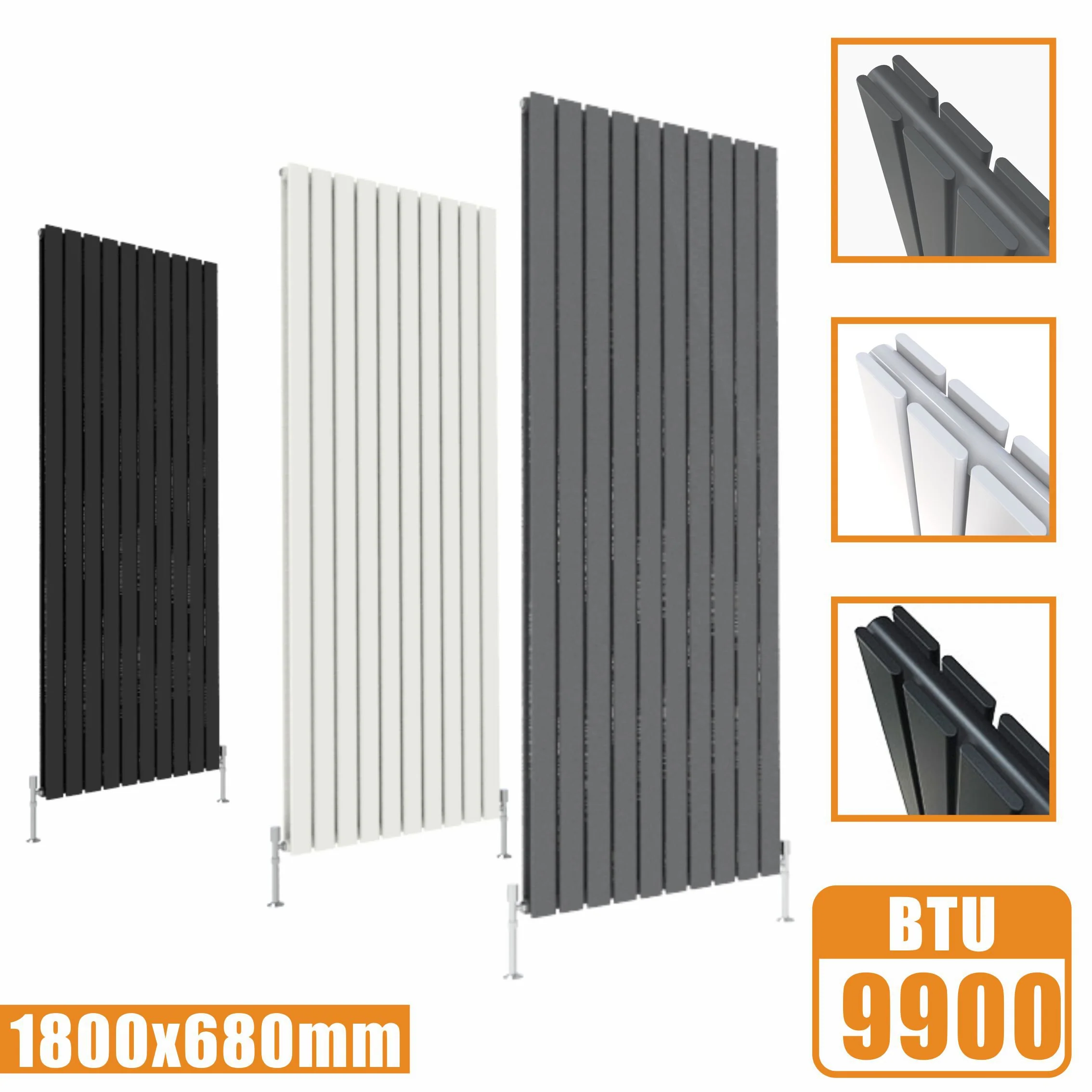

Flat Panel	1800 x 680 mm	Double	10+10	54.2	2901	9900	Click to view

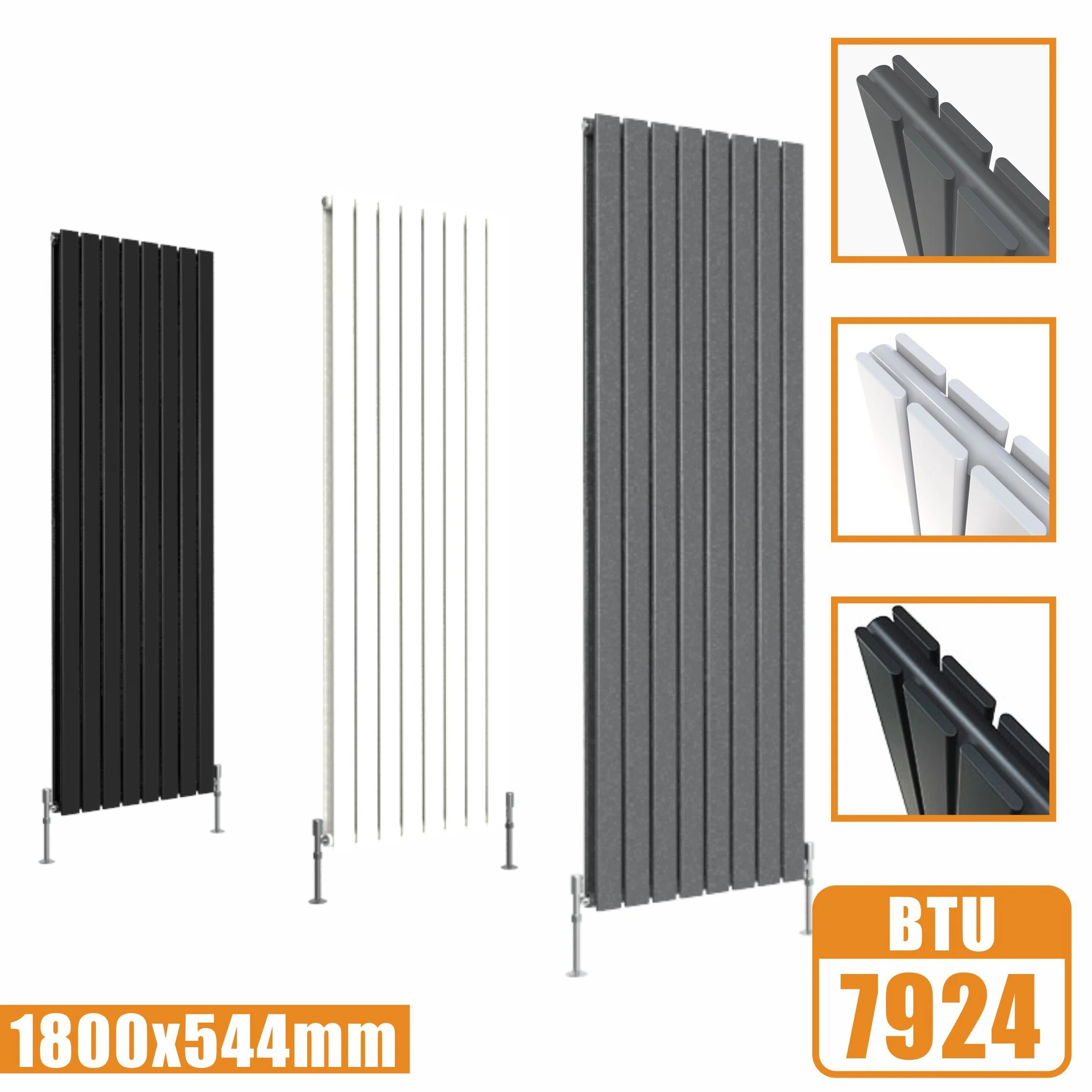

Flat Panel	1800 x 544 mm	Double	8+8	41.8	2322	7924	Click to view

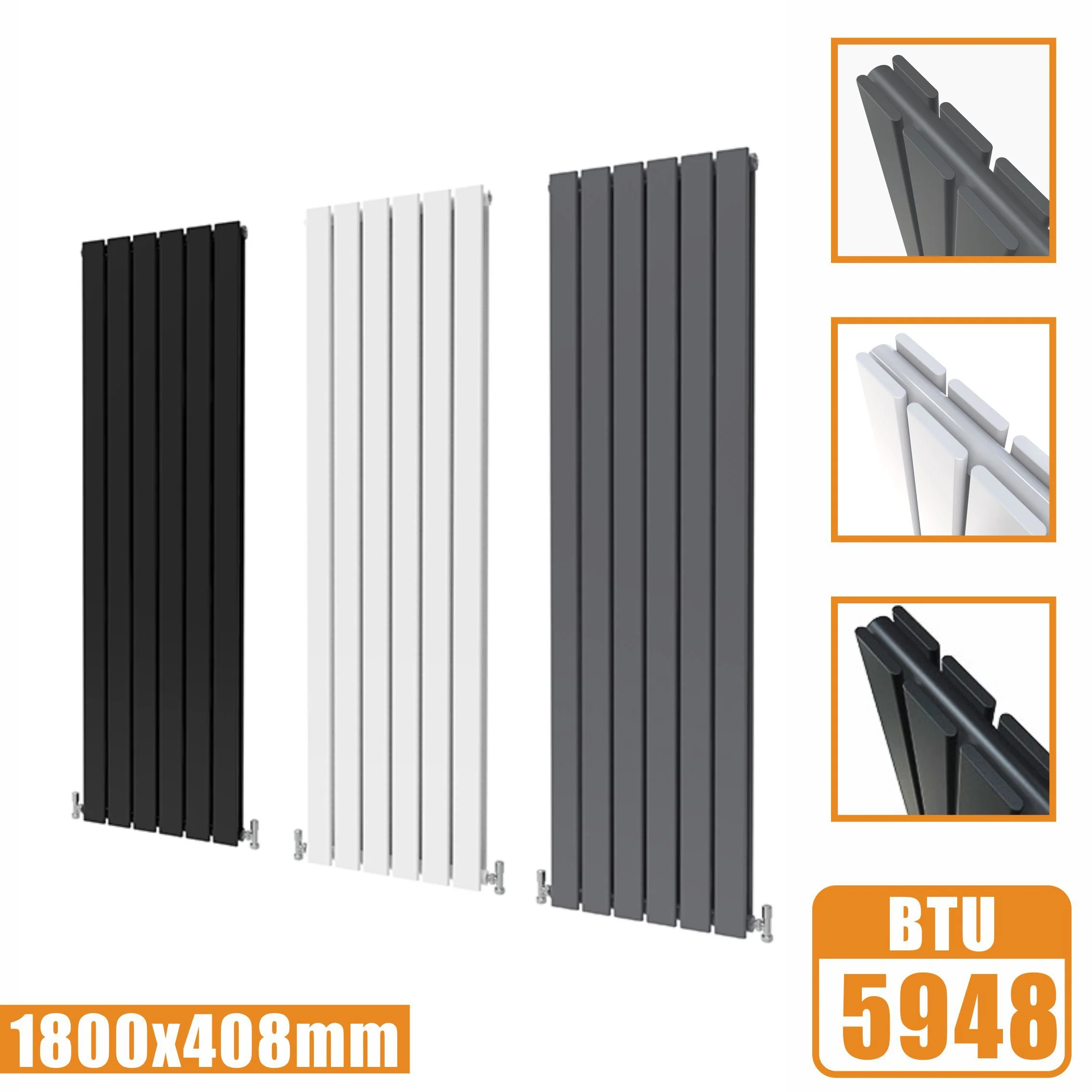

Flat Panel	1800 x 408 mm	Double	6+6	36.4	1743	5948	Click to view

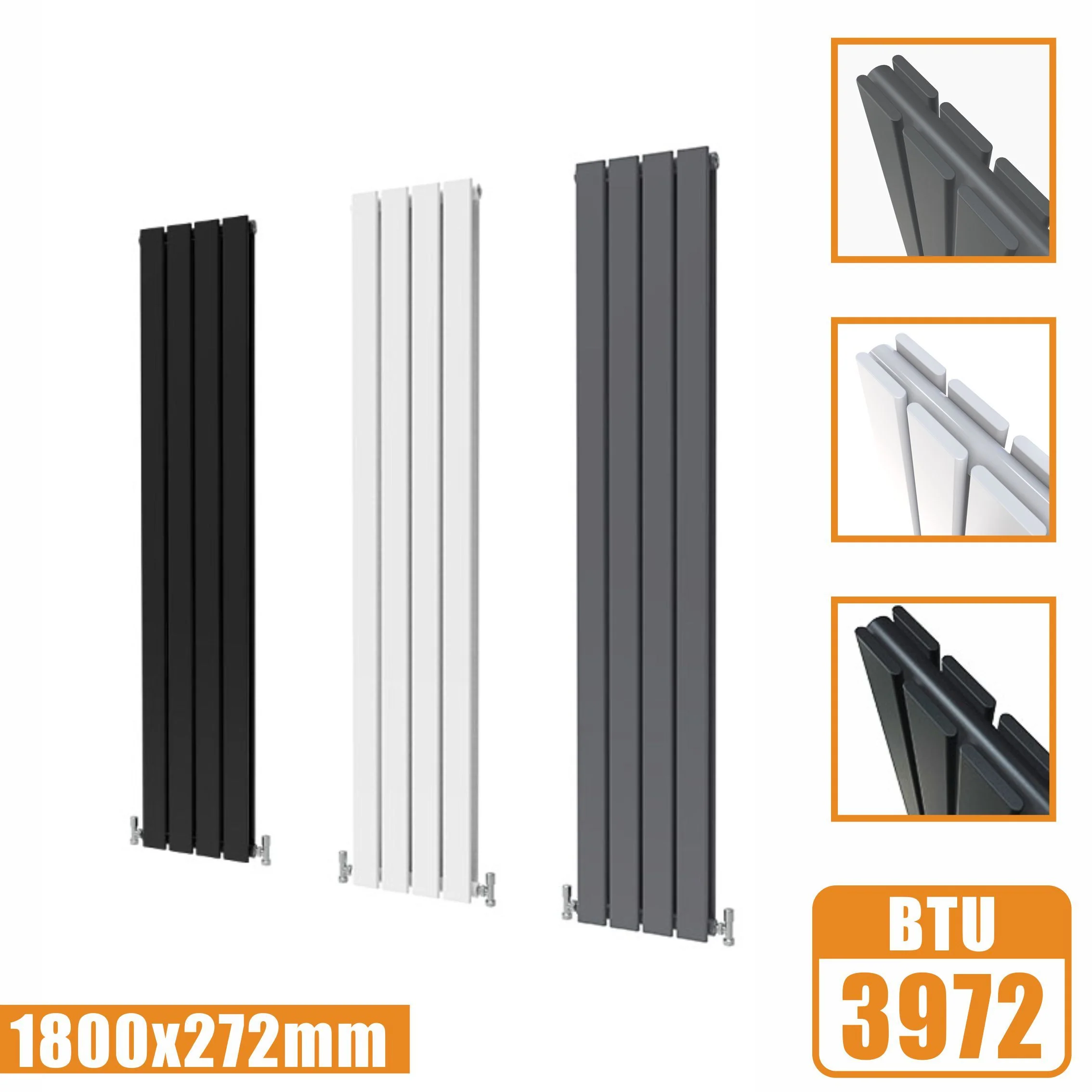

Flat Panel	1800 x 272 mm	Double	4+4	24.5	1164	3972	Click to view

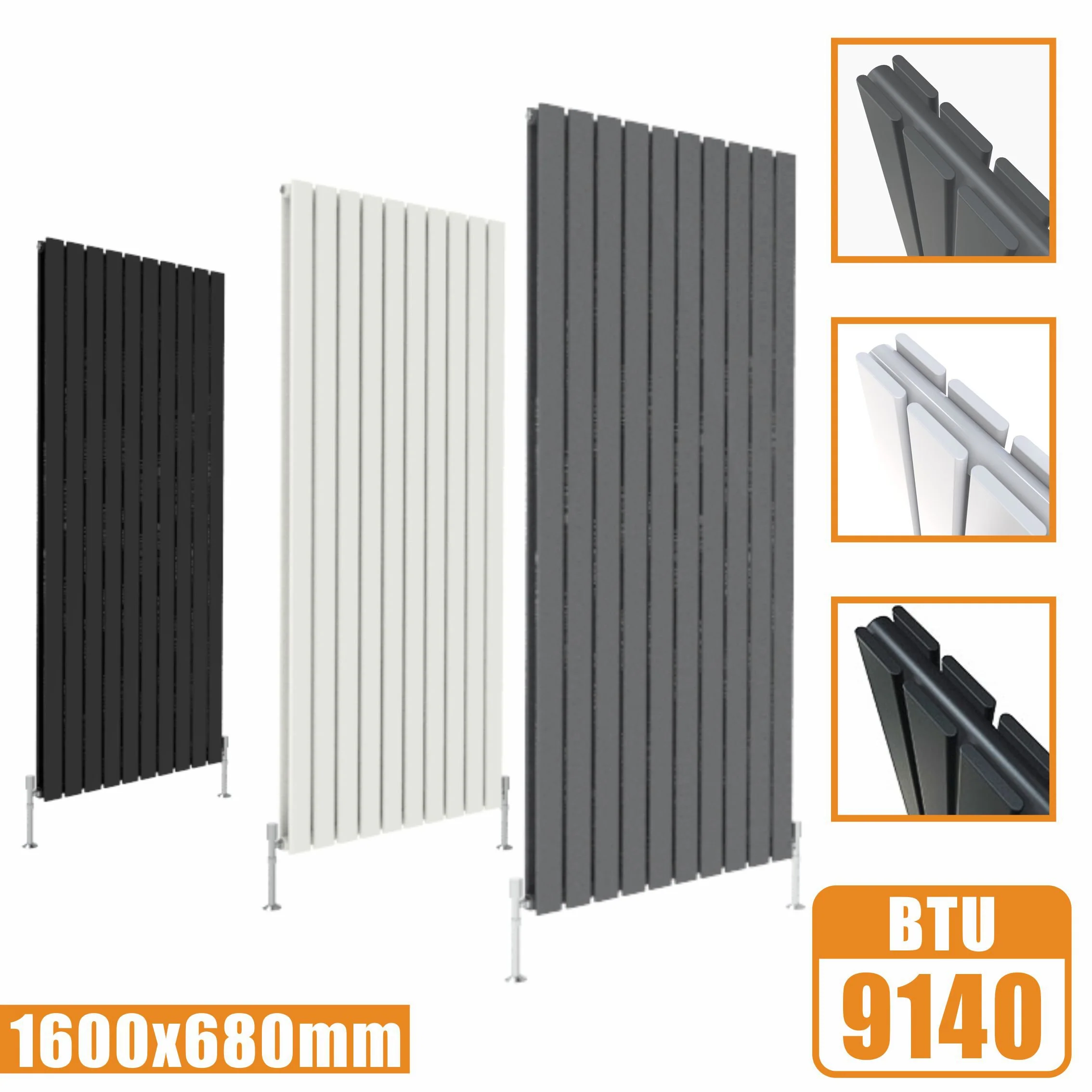

Flat Panel	1600 x 680 mm	Double	10+10	48.7	2678	9140	Click to View

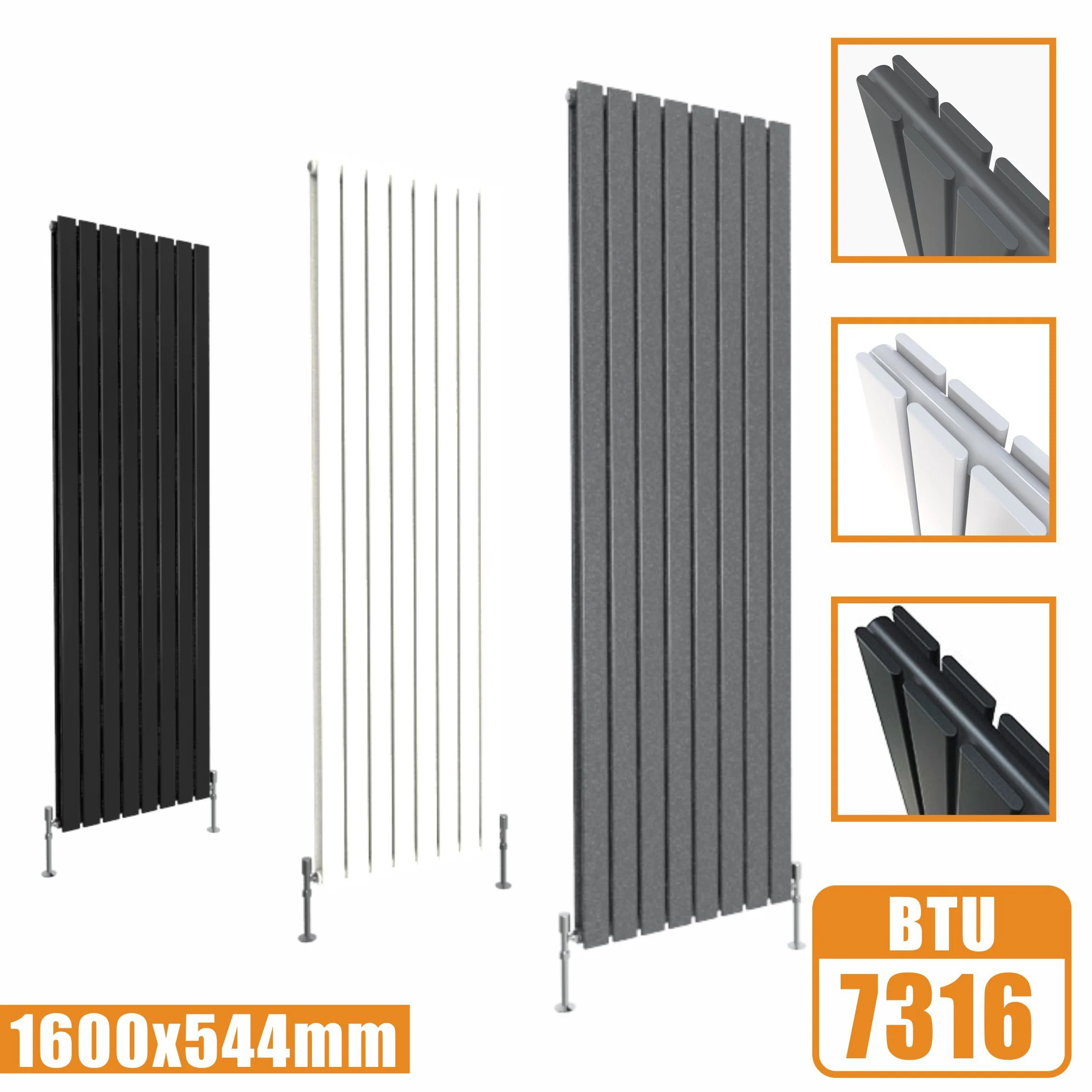

Flat Panel	1600 x 544 mm	Double	8+8	43.1	2114	7316	Click to View

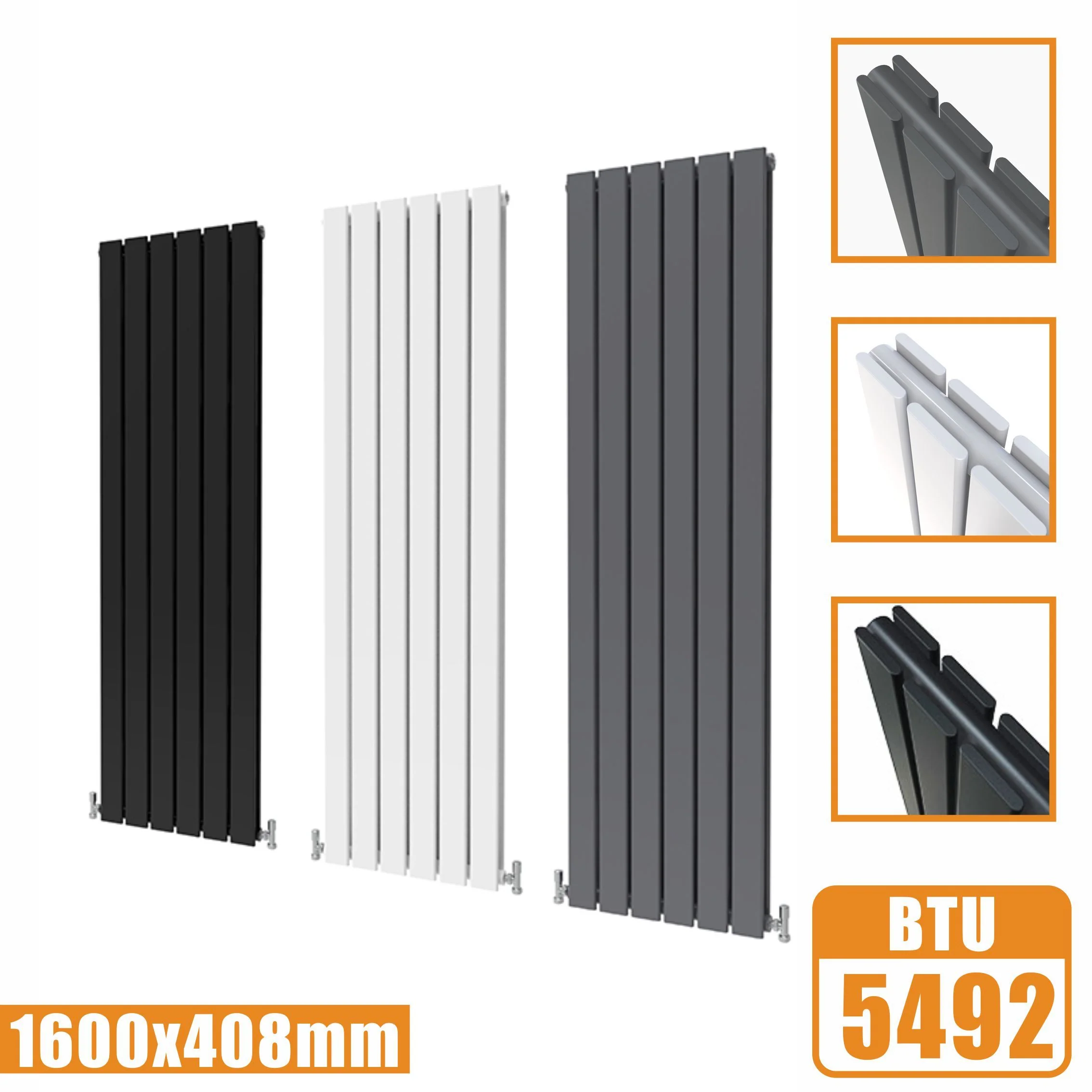

Flat Panel	1600 x 408 mm	Double	6+6	33.1	1609	5492	Click to View
Flat Panel	1600 x 272 mm	Double	4+4	21.9	1075	3668	Click to View

---

*Not recommend to install any pipework before you receive your radiator.

*BTU for reference only, it depends on various elements such as flow temperature and indoor temperature.

?
