Vertical Designer Oval Tube Radiators

Description:

• Lifetime Warranty.
• Premium 1.6mm Thickness Mild Steel.
• Triple layered finish.
• Color: Anthracite/White/Black
• Fully safety tested.
• Brackets and fixings included.
• Compatible for use on all UK heating systems.
• It perfectly matches the decoration style of all rooms such as kitchen, bathroom, bedroom and living room.

---

Features & Details:

• High quality triple layered finish.
• Manufactured in accordance with BS EN 442
• 1/2" inlets and outlets
• Unique hot water circulation structure

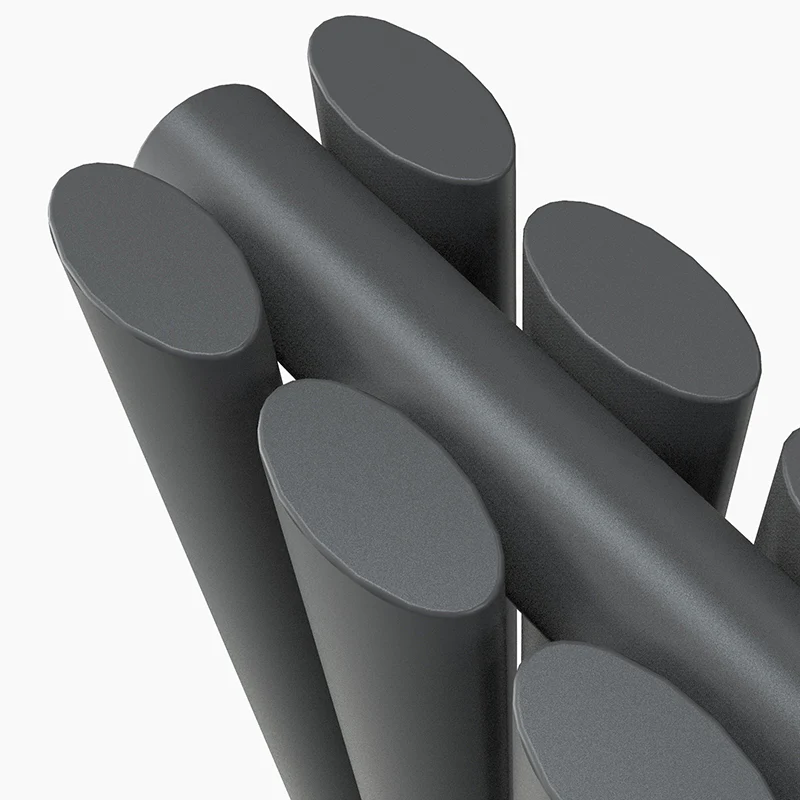

• Modern style vertical oval column high quality radiator
• Wall mount or stand-up installation
• Brackets and fixings included
• Valves are not included.But can be bought separately.Click here to buy our high quality valves.
• Note: Anthracite and Black Color Are Matte and the White Color is Gloss

---

Single Oval Column?Vertical Radiators:

Model	Size (HxW)	Panel	Pipe Amount	Weight (KG)	Heat Output		Data Sheet
					Watt	BTU

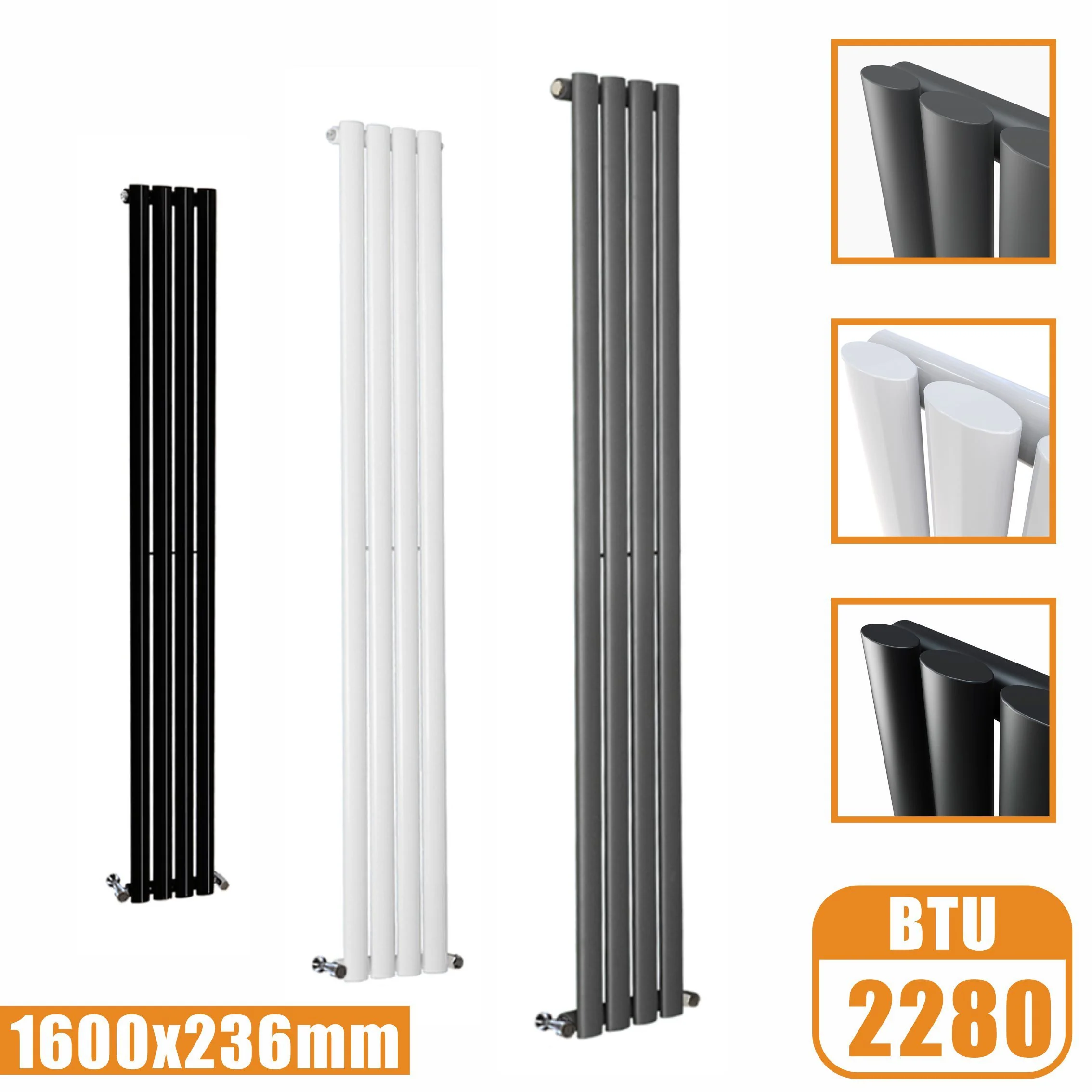

Oval? Tube	1600 x 236 mm	Single	4	11	668	2280	Click to view

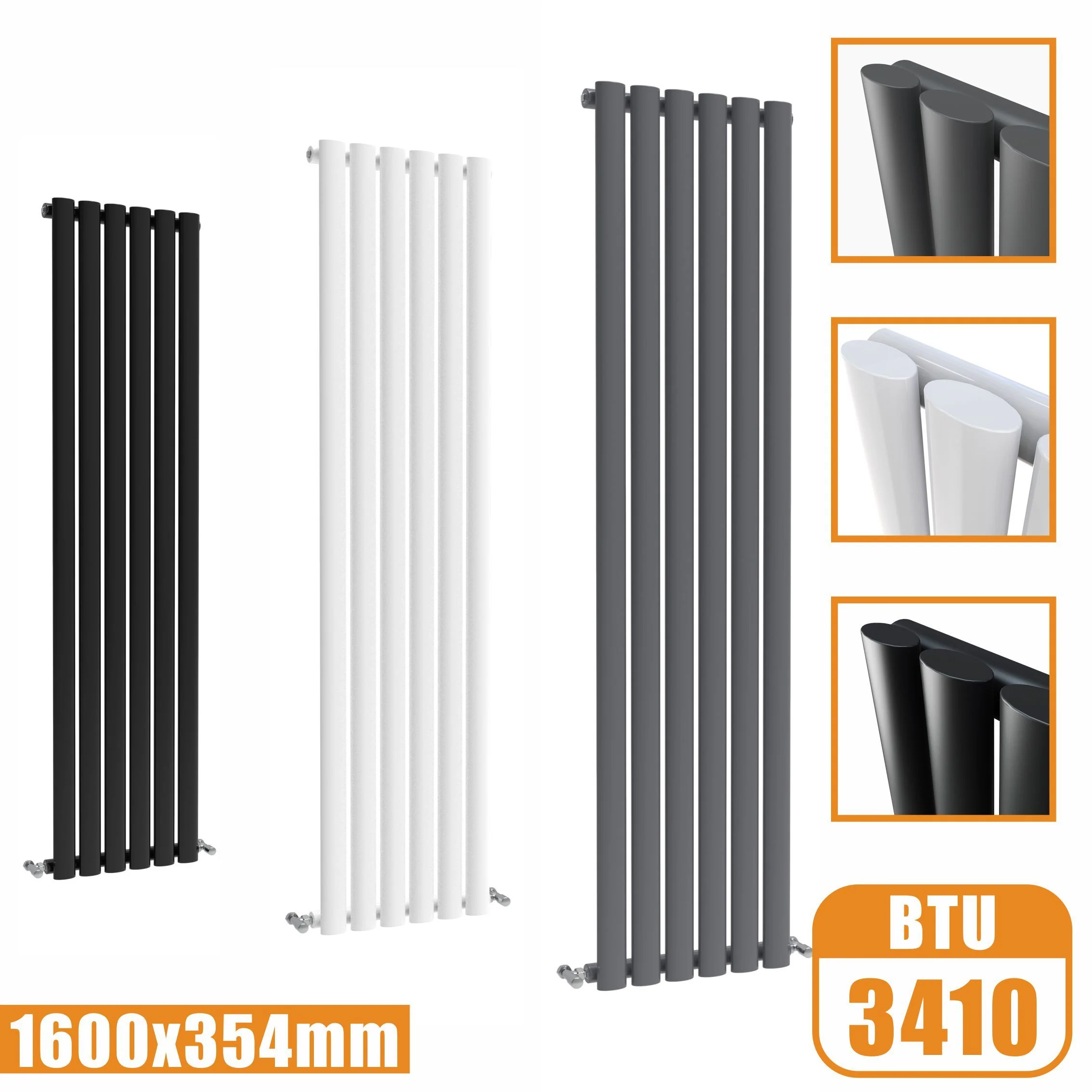

Oval? Tube	1600 x 354 mm	Single	6	16	999	3410	Click to view
Oval? Tube	1600 x 472 mm	Single	8	21.3	1330	4540	Click to view

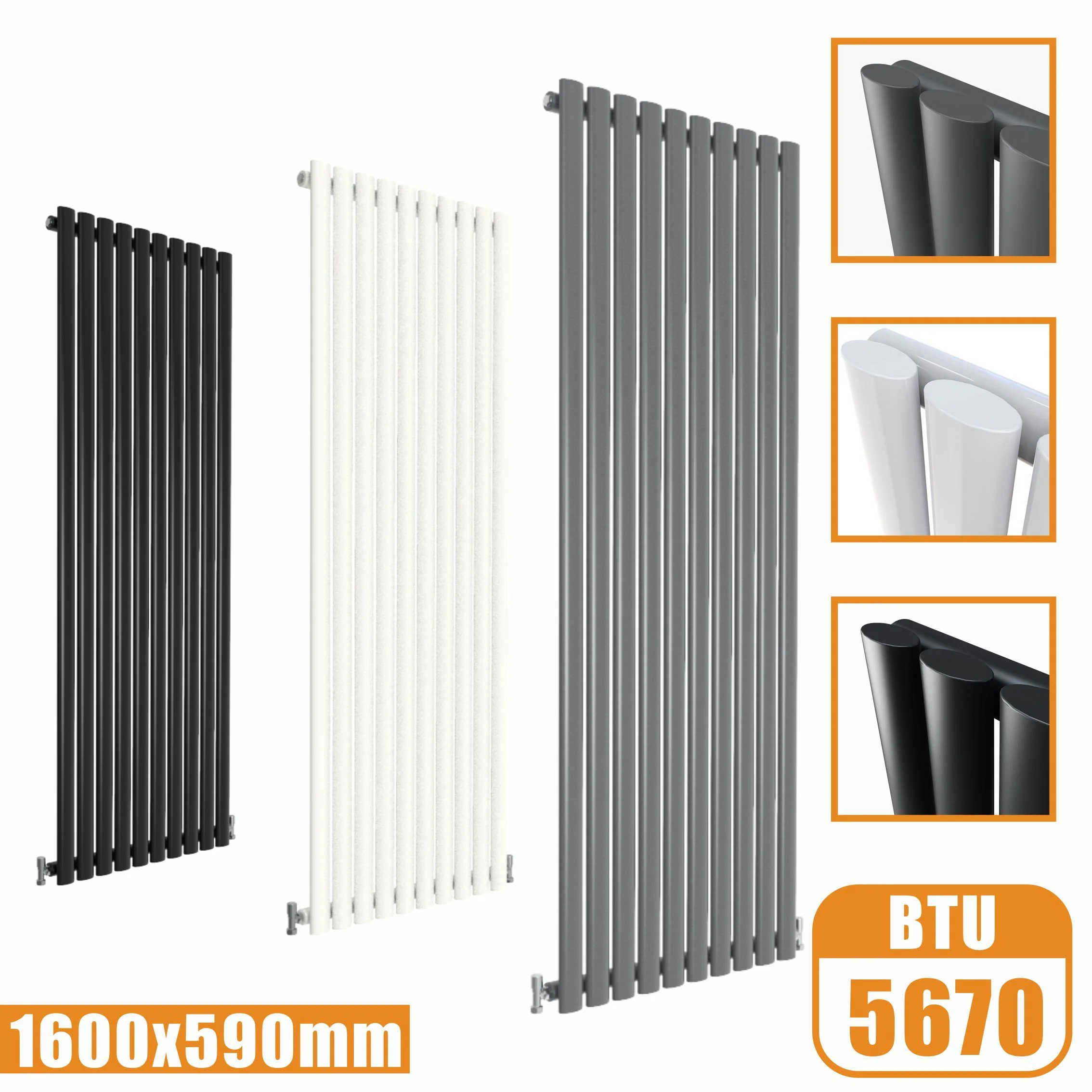

Oval? Tube	1600 x 590 mm	Single	10	26.6	1661	5670	Click to view

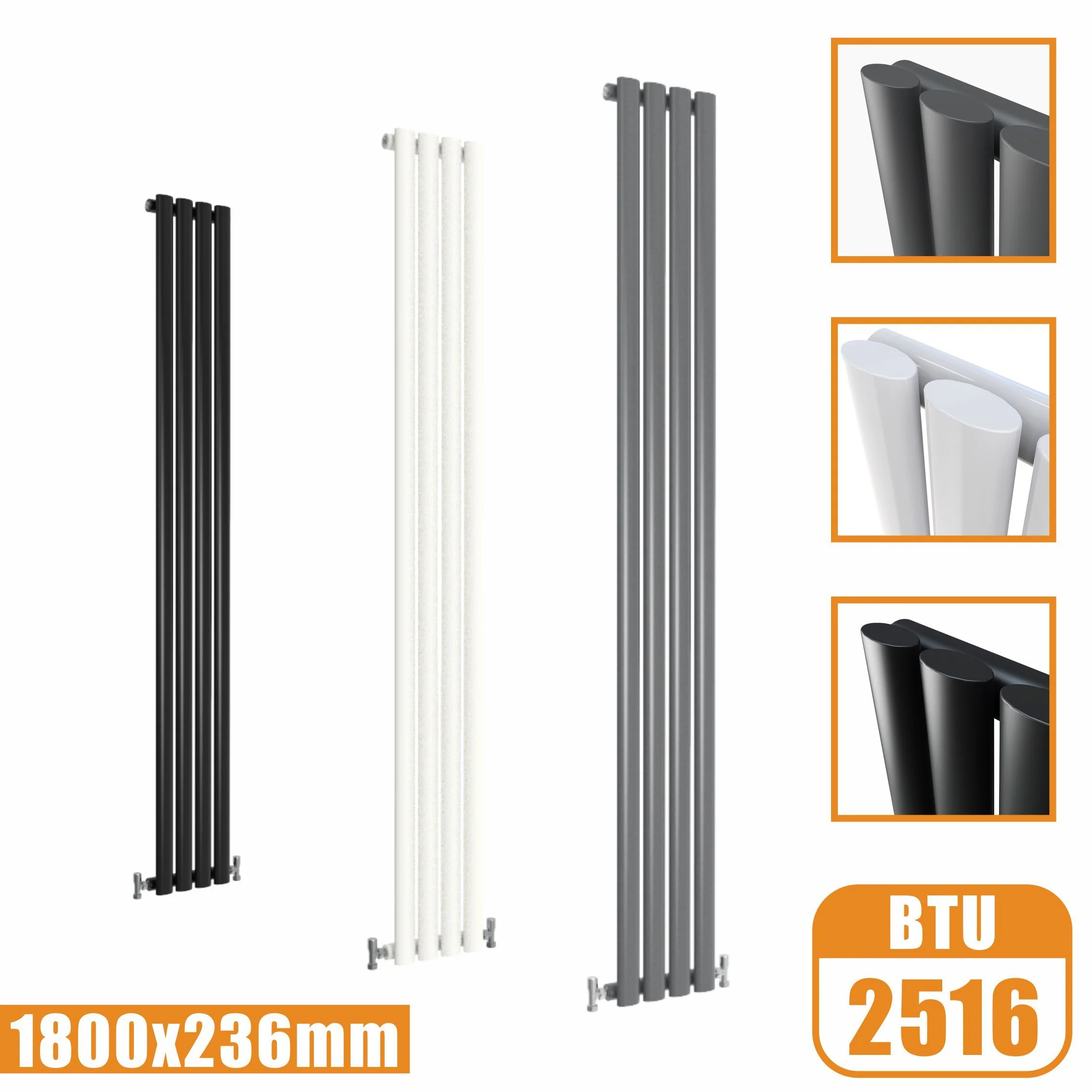

Oval? Tube	1800 x 236 mm	Single	4	11.35	737	2516	Click to view

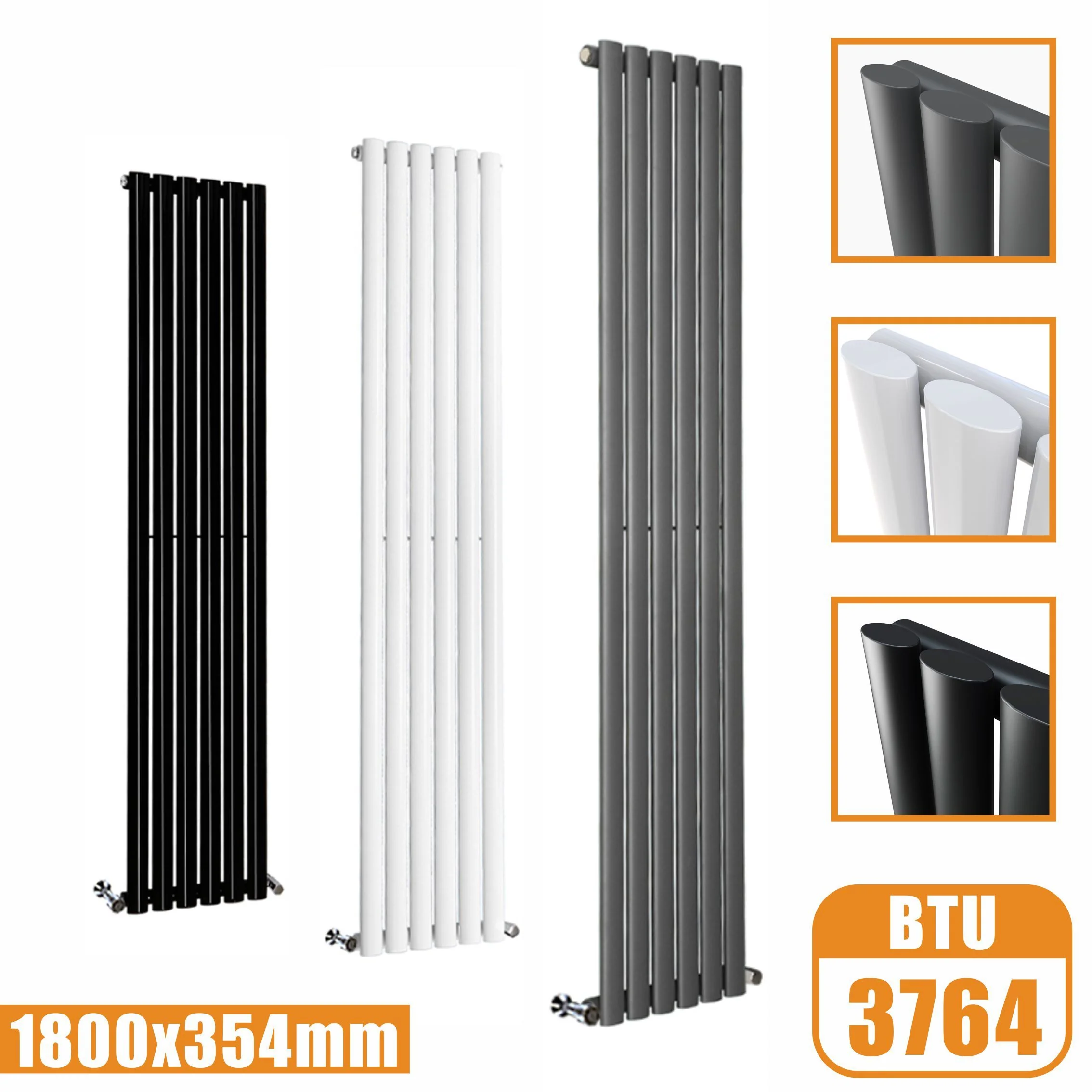

Oval? Tube	1800 x 354 mm	Single	6	19	1103	3764	Click to view

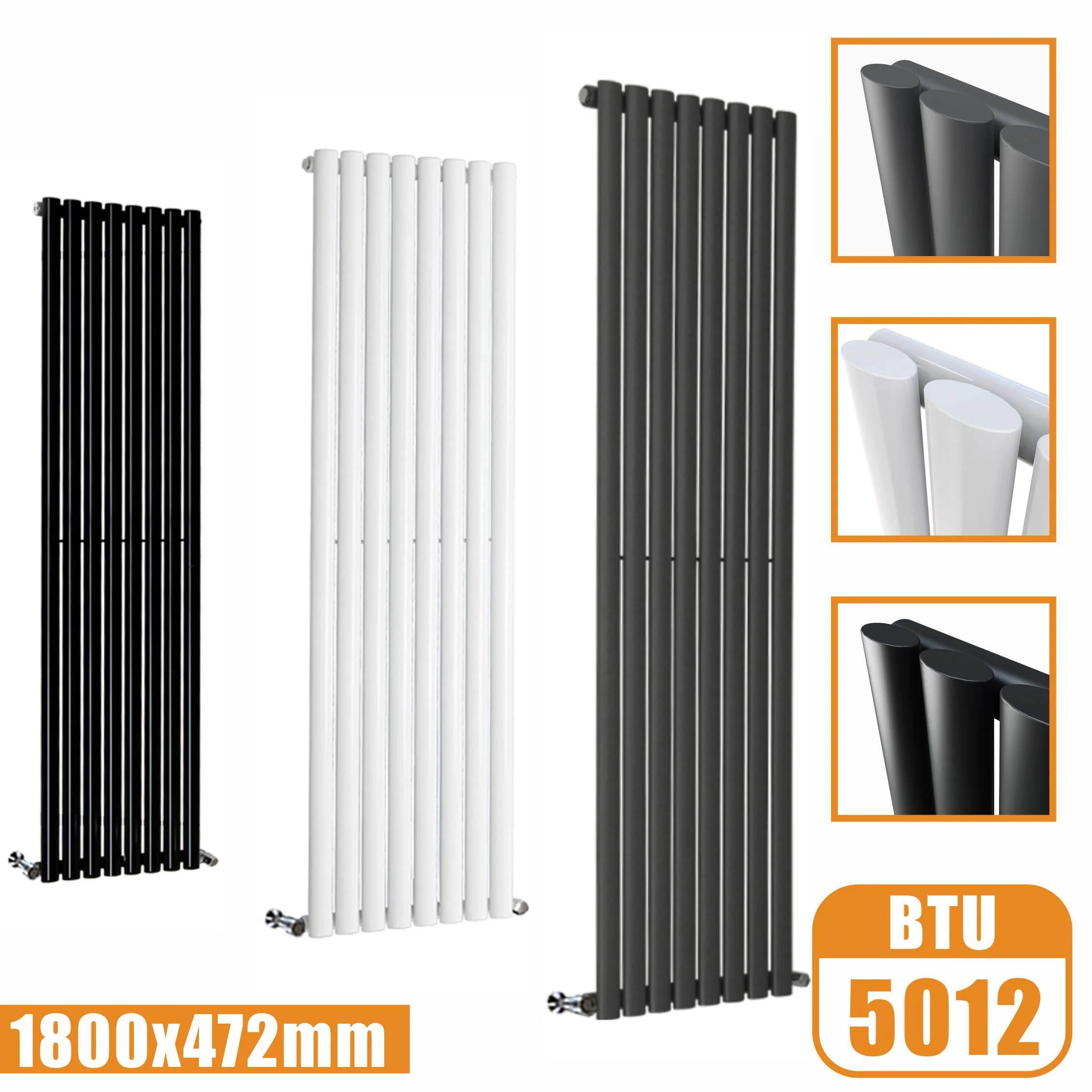

Oval? Tube	1800 x 472 mm	Single	8	25	1469	5012	Click to View

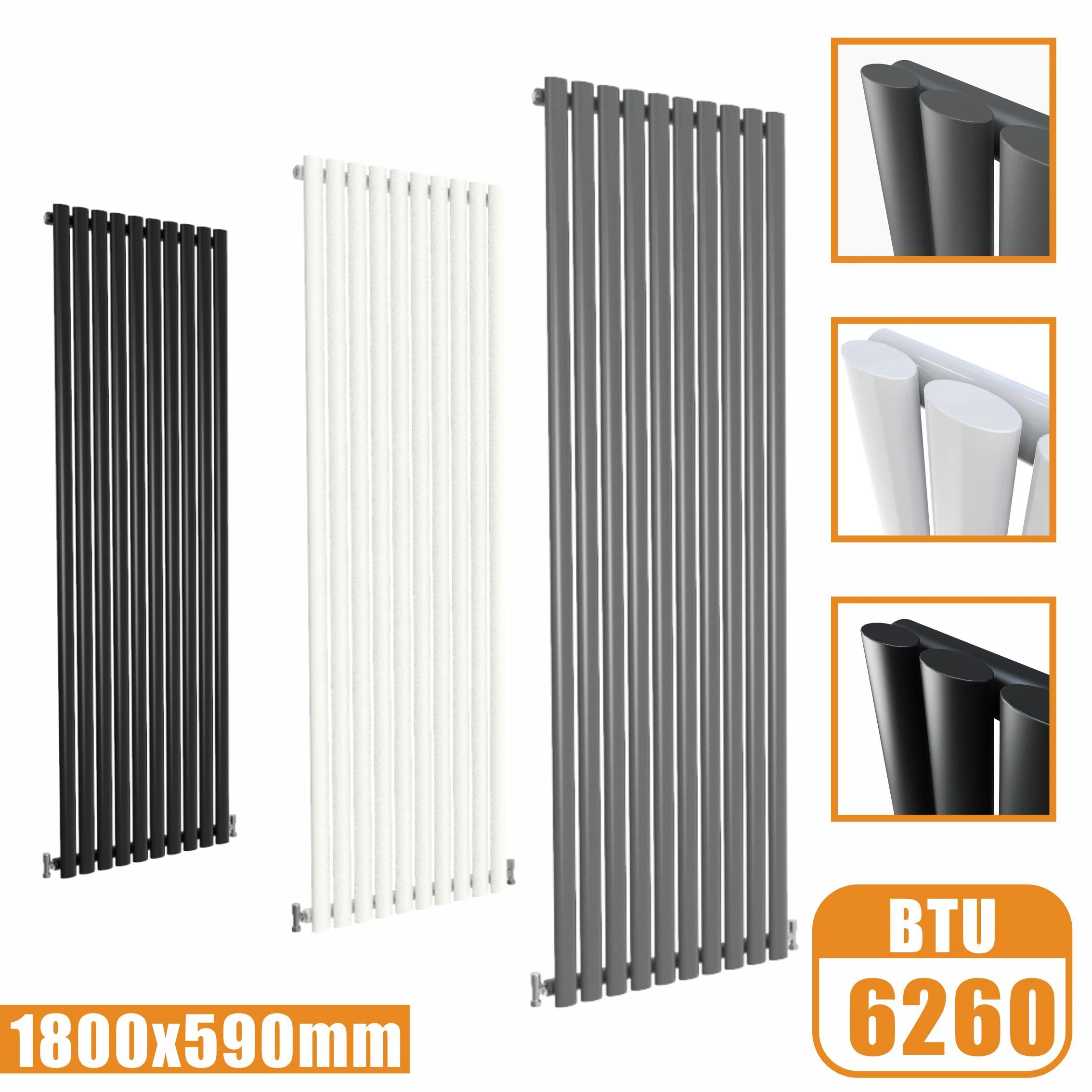

Oval? Tube	1800 x 590 mm	Single	10	31.2	1834	6260	Click to View

---

Double Oval Column?Vertical Radiators:

Model	Size (HxW)	Panel	Pipe Amount	Weight (KG)	Heat Output		Data Sheet
					Watt	BTU

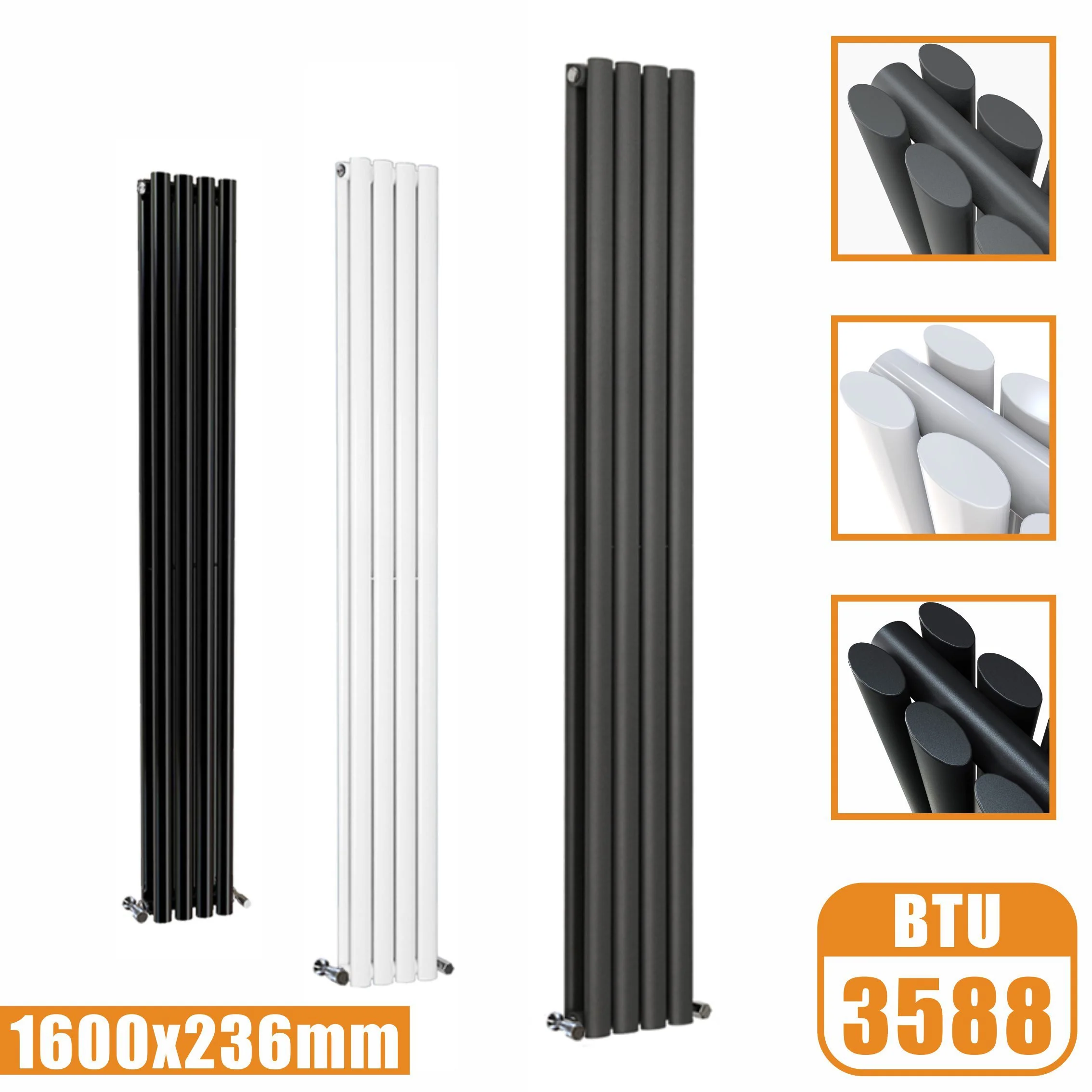

Oval? Tube	1600 x 236 mm	Double	4+4	20	1051	3588	Click to view

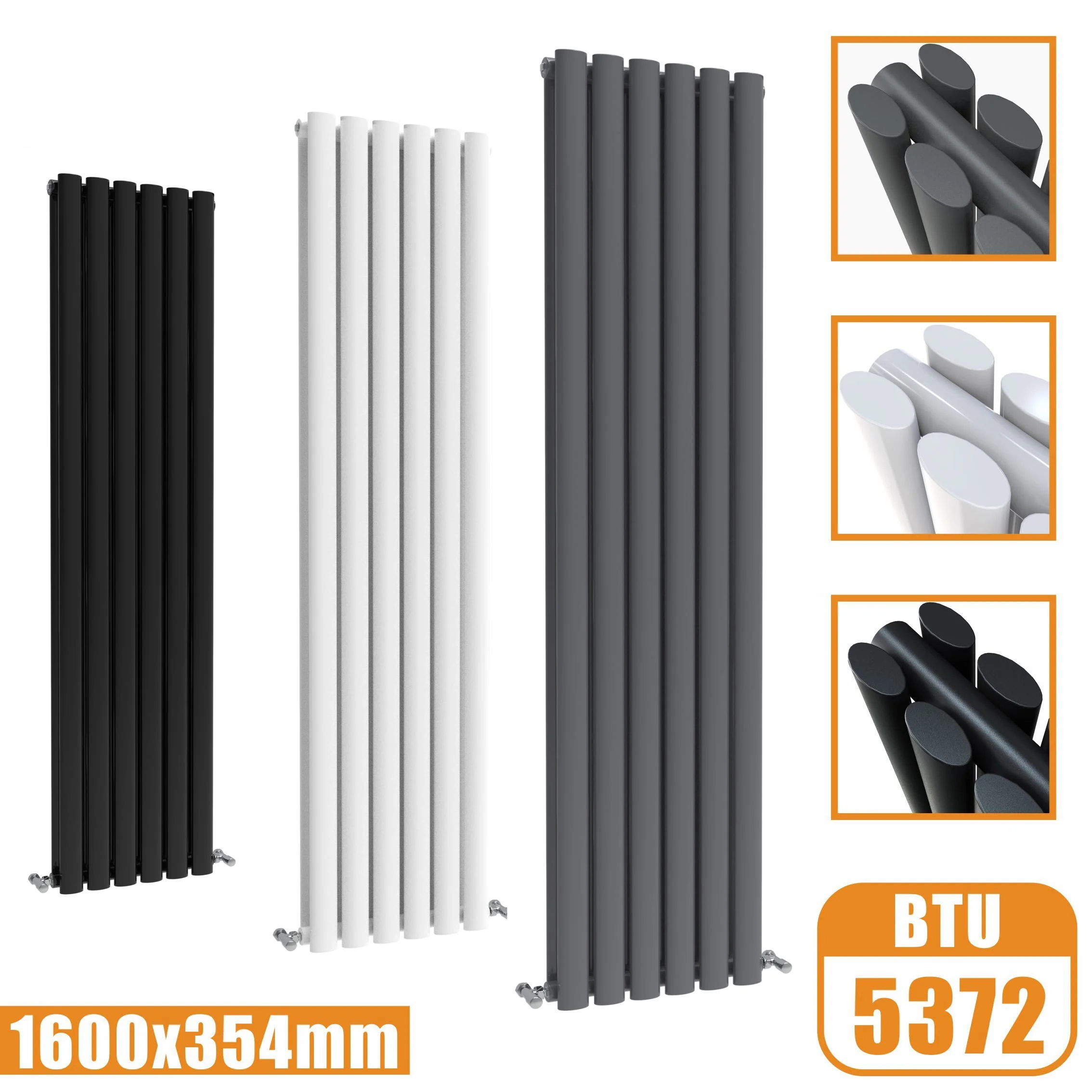

Oval? Tube	1600 x 354 mm	Double	6+6	29.3	1574	5372	Click to view

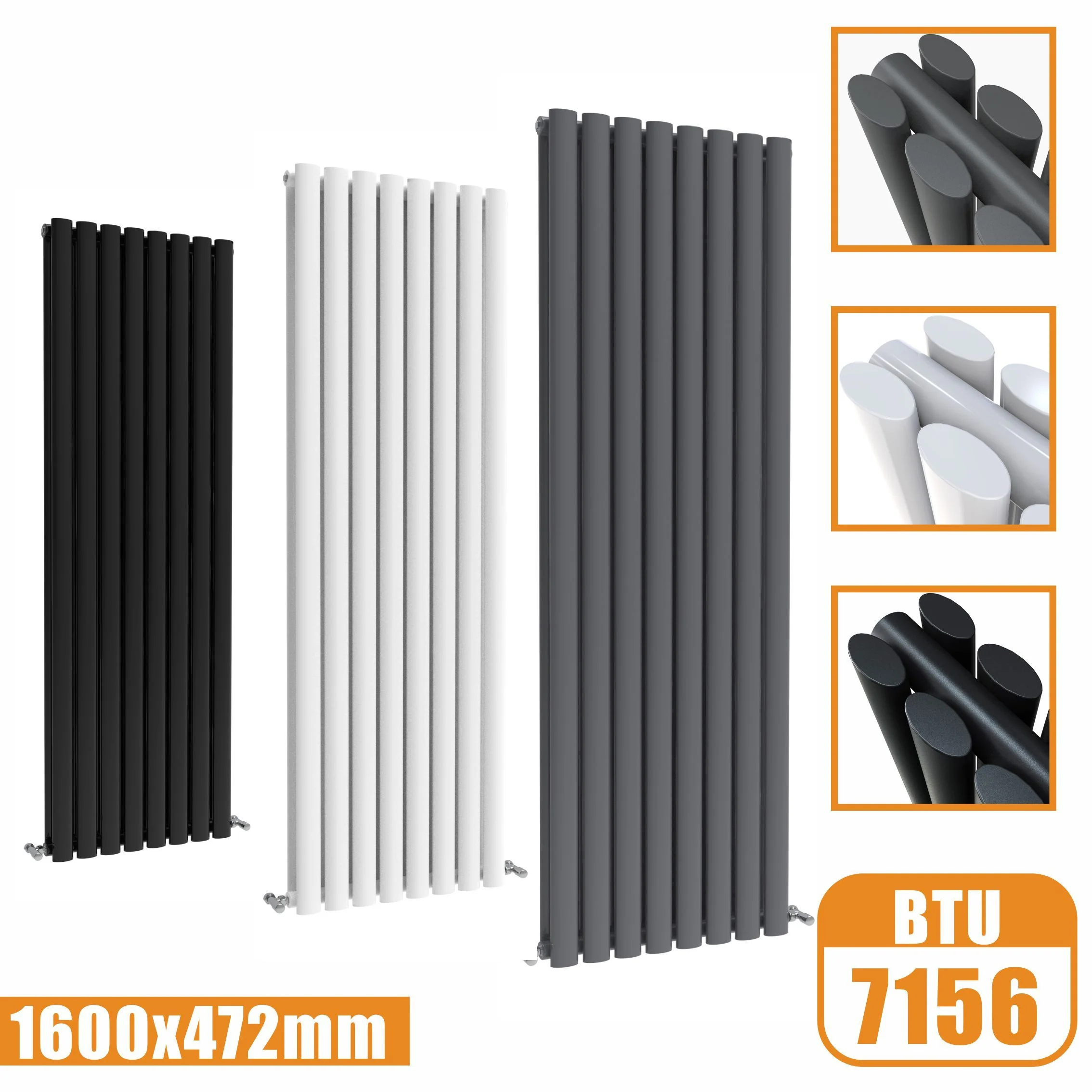

Oval? Tube	1600 x 472 mm	Double	8+8	39	2097	7156	Click to view

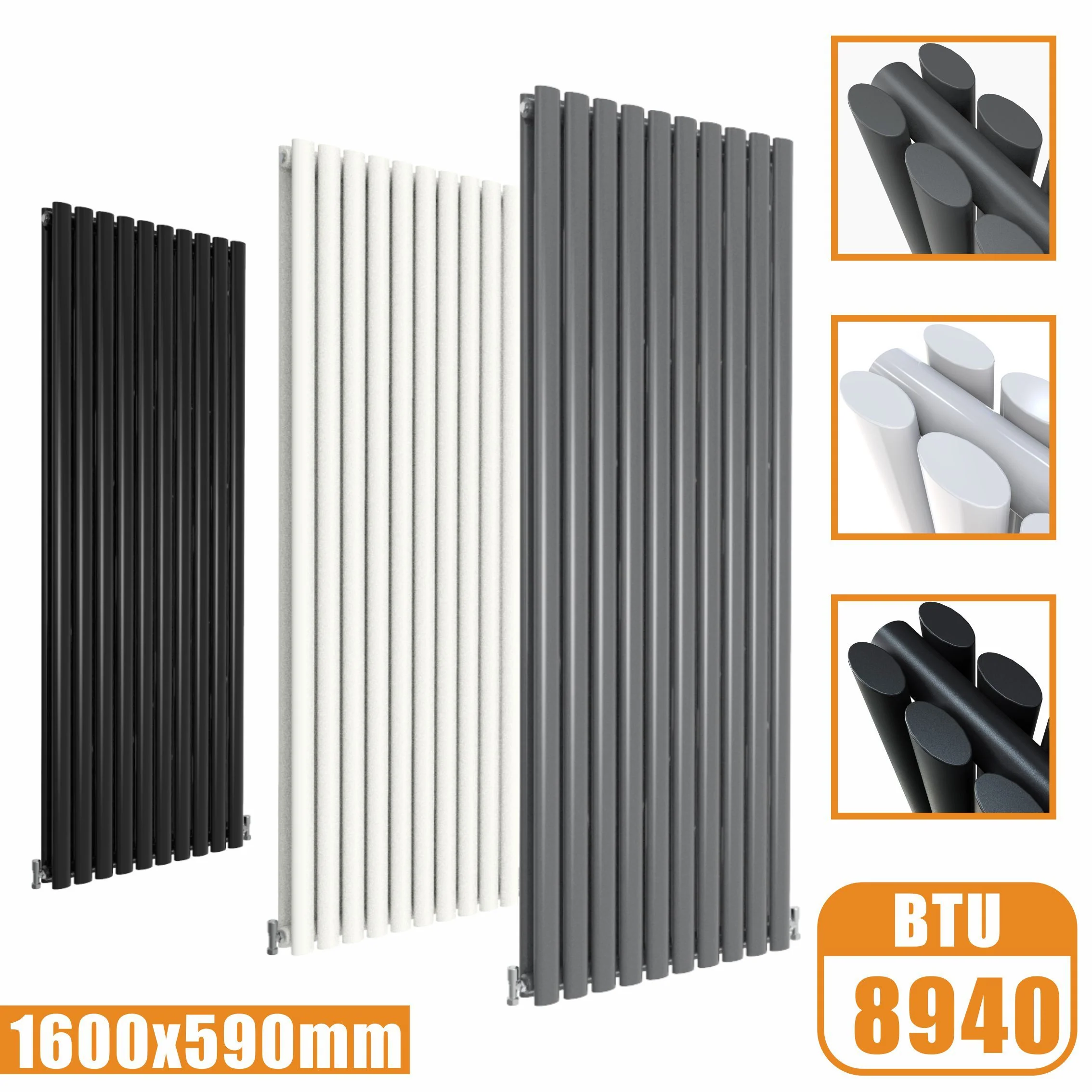

Oval? Tube	1600 x 590 mm	Double	10+10	48.7	2619	8940	Click to view

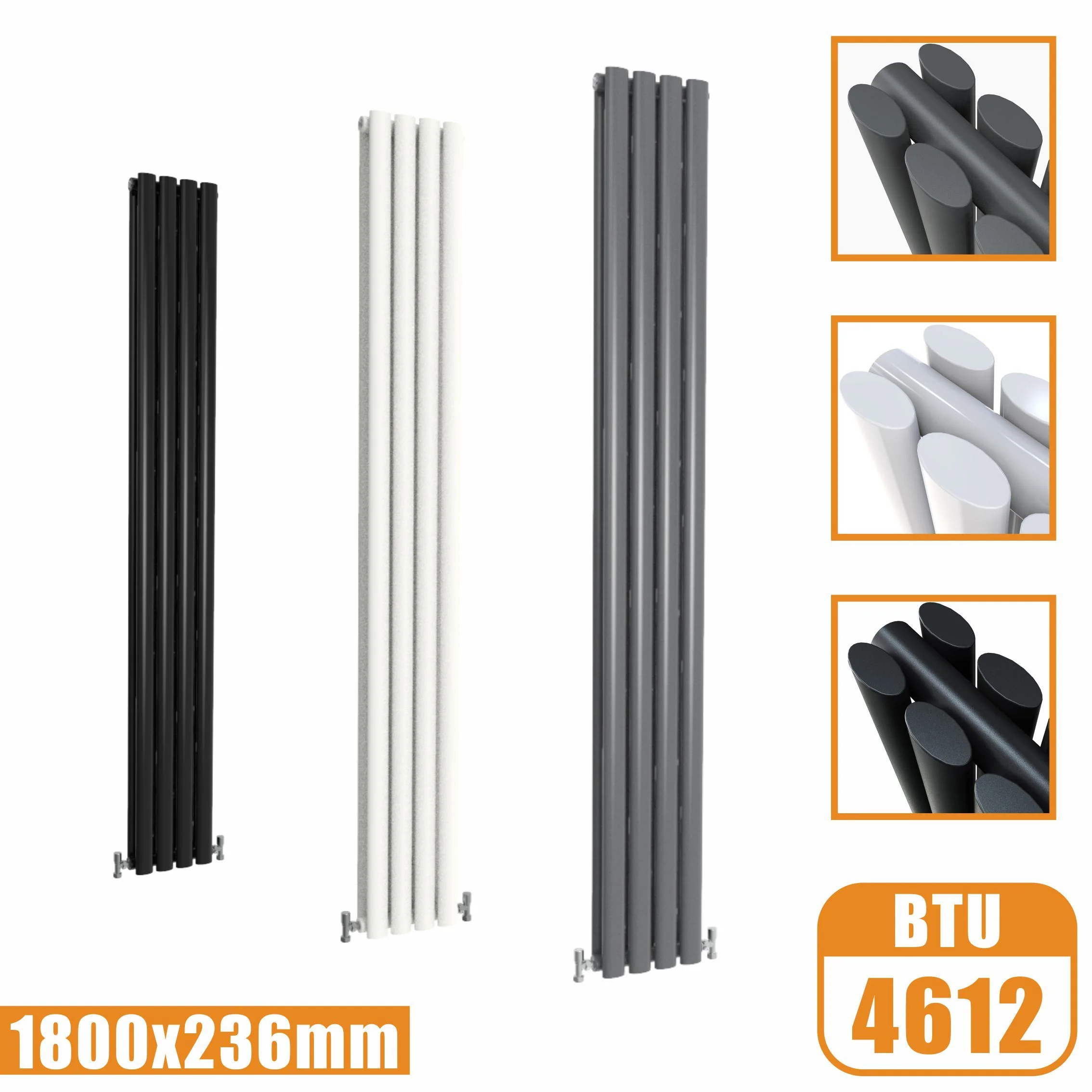

Oval? Tube	1800 x 236 mm	Double	4+4	22	1351	4612	Click to View

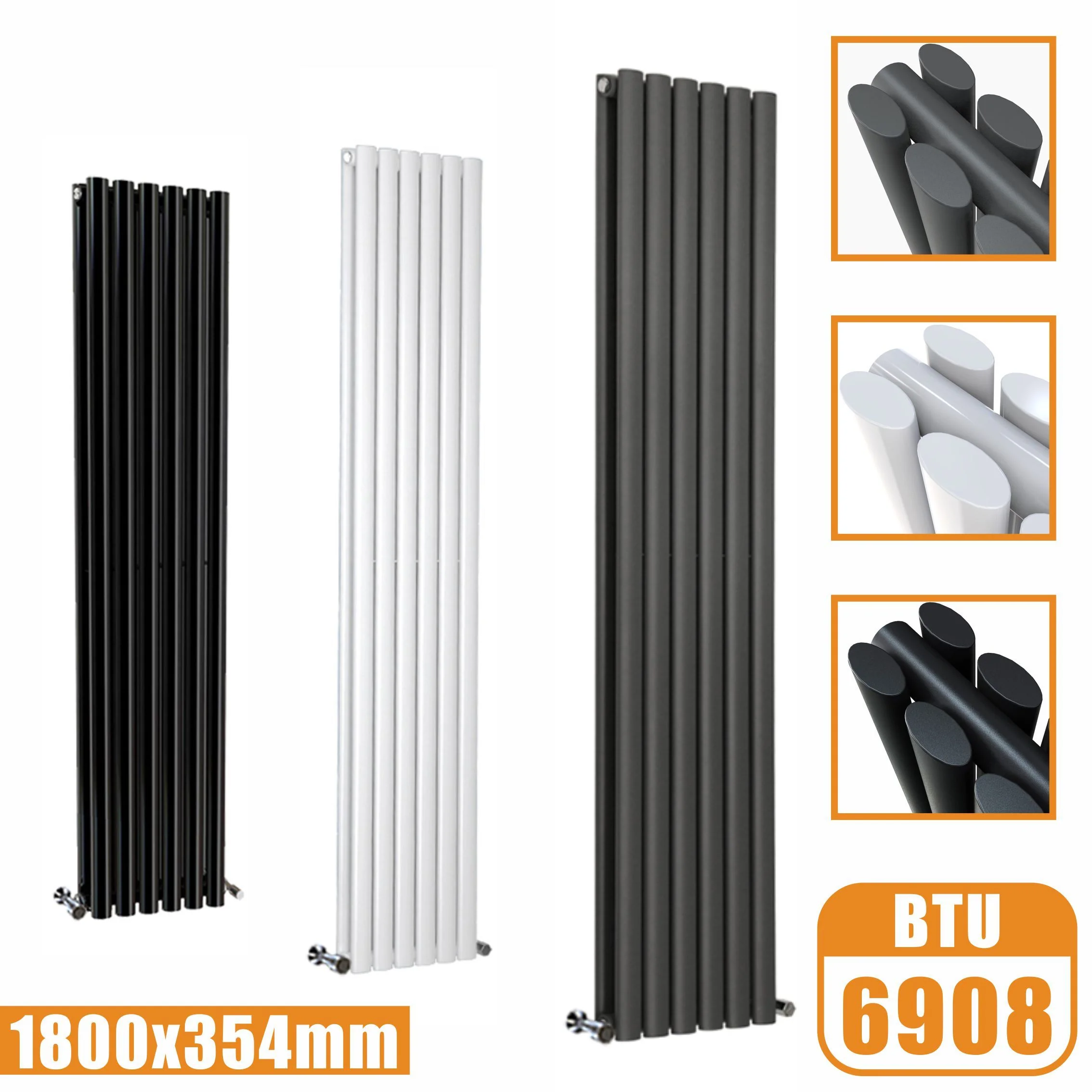

Oval? Tube	1800 x 354 mm	Double	6+6	33	2024	6908	Click to view

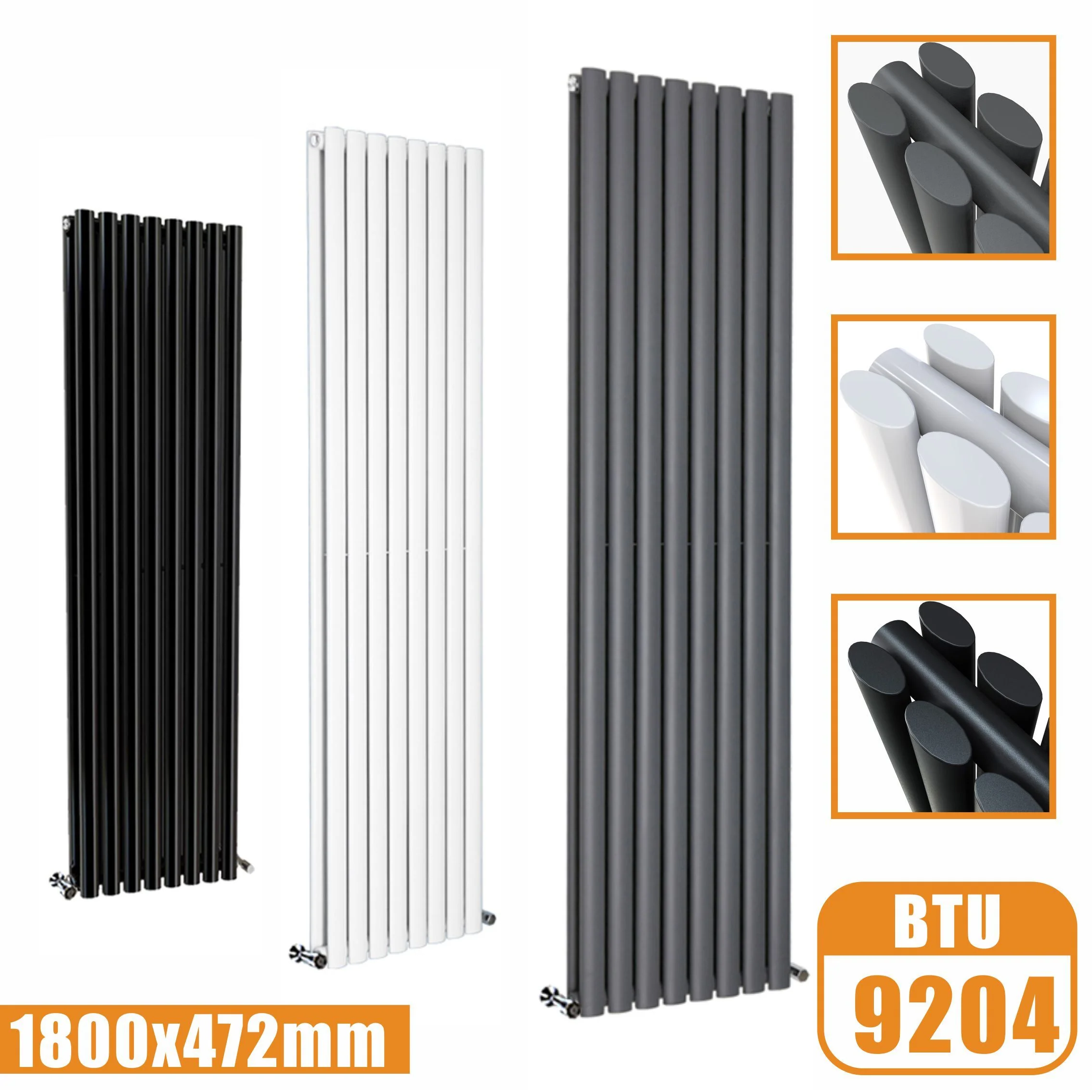

Oval? Tube	1800 x 472 mm	Double	8+8	41	2697	9204	Click to View

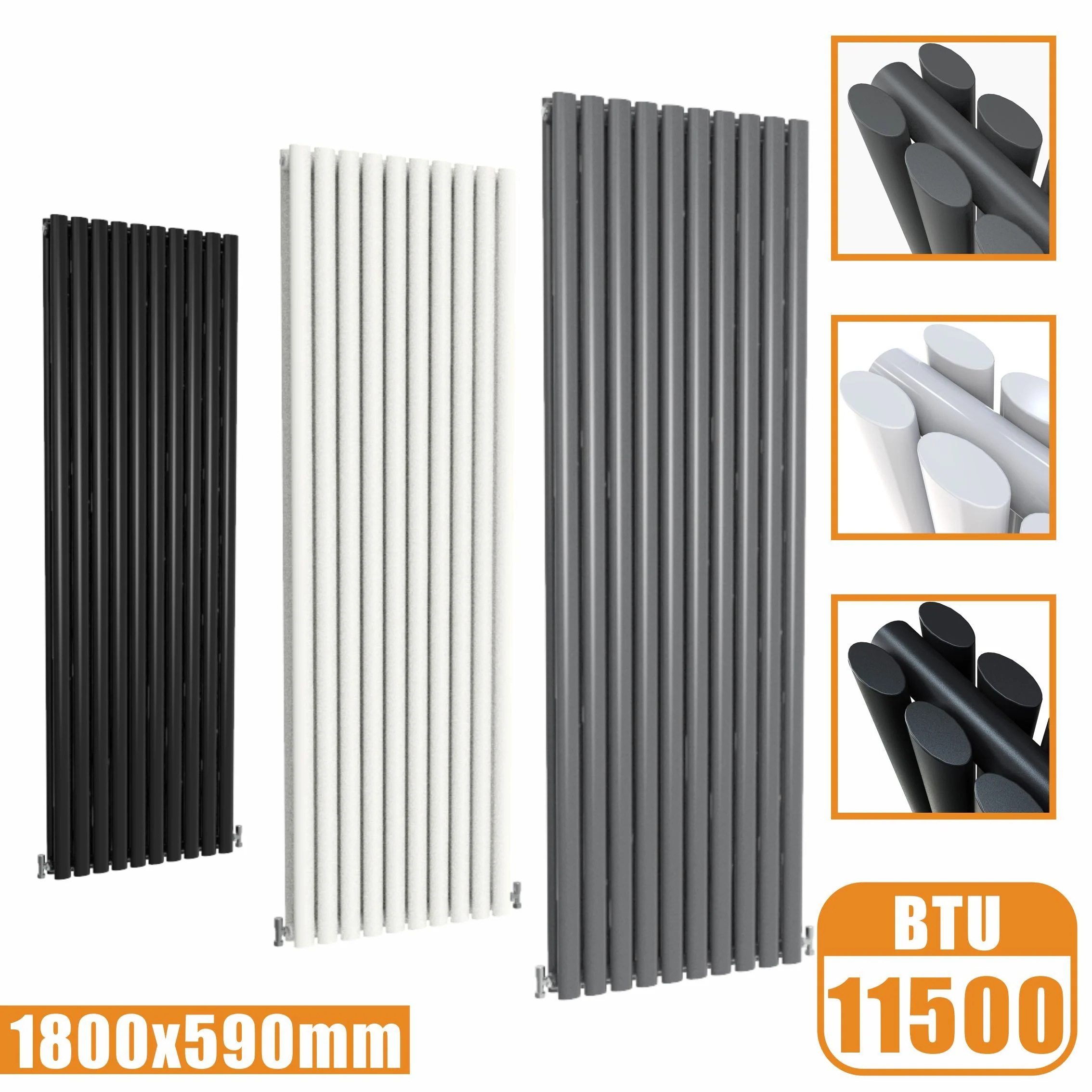

Oval? Tube	1800 x 590 mm	Double	10+10	51.2	3370	11500	Click to View

---

?

*Not recommend to install any pipework before you receive your radiator.

*BTU for reference only, it depends on various elements such as flow temperature and indoor temperature.
